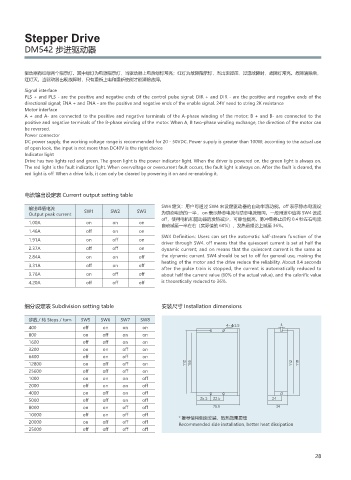

Stepper Drive

DM542 步进驱动器

驱动器有红绿两个指示灯。其中绿灯为电源指示灯，当驱动器上电后绿灯常亮；红灯为故障指示灯，当出现过压、过流故障时，故障灯常亮。故障清除后，
红灯灭。当驱动器出现故障时，只有重新上电和重新使能才能清除故障。

Signal interface
PLS + and PLS - are the positive and negative ends of the control pulse signal; DIR + and DIR - are the positive and negative ends of the
directional signal; ENA + and ENA - are the positive and negative ends of the enable signal. 24V need to string 2K resistance
Motor interface
A + and A- are connected to the positive and negative terminals of the A-phase winding of the motor; B + and B- are connected to the
positive and negative terminals of the B-phase winding of the motor. When A, B two-phase winding exchange, the direction of the motor can
be reversed.
Power connector
DC power supply, the working voltage range is recommended for 20 - 50VDC. Power supply is greater than 100W; according to the actual use
of open look, the input is not more than DC40V is the right choice
Indicator light
Drive has two lights red and green. The green light is the power indicator light. When the driver is powered on, the green light is always on.
The red light is the fault indicator light. When overvoltage or overcurrent fault occurs, the fault light is always on. After the fault is cleared, the
red light is off. When a drive fails, it can only be cleared by powering it on and re-enabling it.

电流输出设定表 Current output setting table

输出峰值电流 SW1 SW2 SW3 SW4 定义：用户可通过 SW4 来设定驱动器的自动半流功能。off 表示静态电流设
Output peak current 为动态电流的一半 , on 表示静态电流与动态电流相同。一般用途中应将 SW4 设成
off，使得电机和驱动器的发热减少，可靠性提高。脉冲串停止后约 0.4 秒左右电流
1.00A on on on
自动减至一半左右（实际值的 60%），发热量理论上减至 36%。
1.46A off on on
SW4 Definition: Users can set the automatic half-stream function of the
1.91A on off on
driver through SW4. off means that the quiescent current is set at half the
2.37A off off on dynamic current, and on means that the quiescent current is the same as
2.84A on on off the dynamic current. SW4 should be set to off for general use, making the
heating of the motor and the drive reduce the reliability. About 0.4 seconds
3.31A off on off
after the pulse train is stopped, the current is automatically reduced to
3.76A on off off about half the current value (60% of the actual value), and the calorific value
4.20A off off off is theoretically reduced to 36%.

细分设定表 Subdivision setting table 安装尺寸 Installation dimensions

步数 / 转 Steps / turn SW5 SW6 SW7 SW8
400 off on on on 4-ф3.5 4
800 on off on on
1600 off off on on
3200 on on off on
6400 off on off on
12800 on off off on 112 105 112 118
25600 off off off on
1000 on on on off
2000 off on on off
4000 on off on off
5000 off off on off 25.3 22.5 24
8000 on on off off 75.5 34
10000 off on off off * 推荐使用侧面安装、散热效果更佳
20000 on off off off Recommended side installation, better heat dissipation
25000 off off off off
