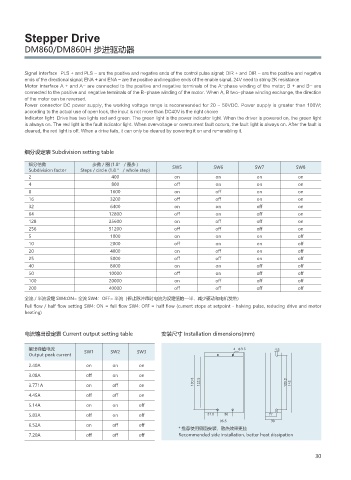

Page 33 - 温州逸特机电科技有限公司

Stepper Drive

DM860/DM860H 步进驱动器

Signal interface PLS + and PLS - are the positive and negative ends of the control pulse signal; DIR + and DIR - are the positive and negative
ends of the directional signal; ENA + and ENA - are the positive and negative ends of the enable signal. 24V need to string 2K resistance
Motor interface A + and A- are connected to the positive and negative terminals of the A-phase winding of the motor; B + and B- are
connected to the positive and negative terminals of the B-phase winding of the motor. When A, B two-phase winding exchange, the direction
of the motor can be reversed.
Power connector DC power supply, the working voltage range is recommended for 20 - 50VDC. Power supply is greater than 100W;
according to the actual use of open look, the input is not more than DC40V is the right choice
Indicator light Drive has two lights red and green. The green light is the power indicator light. When the driver is powered on, the green light
is always on. The red light is the fault indicator light. When overvoltage or overcurrent fault occurs, the fault light is always on. After the fault is
cleared, the red light is off. When a drive fails, it can only be cleared by powering it on and re-enabling it.

细分设定表 Subdivision setting table

细分倍数 步数 / 圈 (1.8° /整步) SW5 SW6 SW7 SW8
Subdivision factor Steps / circle (1.8 ° / whole step)
2 400 on on on on
4 800 off on on on
8 1600 on off on on
16 3200 off off on on
32 6400 on on off on
64 12800 off on off on
128 25600 on off off on
256 51200 off off off on
5 1000 on on on off
10 2000 off on on off
20 4000 on off on off
25 5000 off off on off
40 8000 on on off off
50 10000 off on off off
100 20000 on off off off
200 40000 off off off off

全流／半流设定 SW4:ON= 全流 SW4：OFF= 半流（停止脉冲串时电流为设定值的—半，减少驱动和电机发热）
Full flow / half flow setting SW4: ON = full flow SW4: OFF = half flow (current stops at setpoint - halving pulse, reducing drive and motor
heating)

电流输出设定表 Current output setting table 安装尺寸 Installation dimensions(mm)

输出峰值电流 SW1 SW2 SW3 4-ф3.5 4.5
Output peak current
2.40A on on on
3.08A off on on
130.8 122.5 130.3
3.771A on off on 143
4.45A off off on
5.14A on on off
5.83A off on off 31.8 36 27
95.5 38
6.52A on off off
* 推荐使用侧面安装、散热效果更佳
7.20A off off off Recommended side installation, better heat dissipation

30
