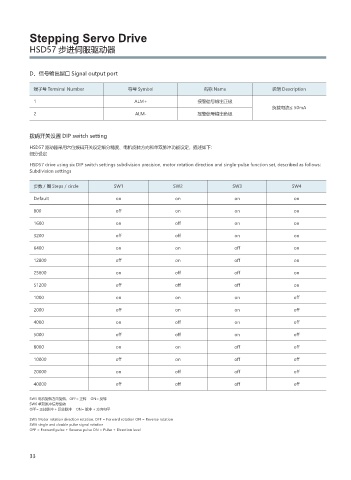

Stepping Servo Drive
HSD57 步进伺服驱动器
D、信号输出端口 Signal output port
端子号 Terminal Number 符号 Symbol 名称 Name 说明 Description
1 ALM+ 报警信号输出正极
负载电流≤ 50mA
2 ALM- 报警信号输出负极
拨码开关设置 DIP switch setting
HSD57 驱动器采用六位拨码开关设定细分精度、电机旋转方向和单双脉冲功能设定，描述如下：
细分设定
HSD57 drive using six DIP switch settings subdivision precision, motor rotation direction and single-pulse function set, described as follows:
Subdivision settings
步数 / 圈 Steps / circle SW1 SW2 SW3 SW4
Default on on on on
800 off on on on
1600 on off on on
3200 off off on on
6400 on on off on
12800 off on off on
25600 on off off on
51200 off off off on
1000 on on on off
2000 off on on off
4000 on off on off
5000 off off on off
8000 on on off off
10000 off on off off
20000 on off off off
40000 off off off off
SW5 电机旋转方向旋转，OFF= 正转 ON= 反转
SW6 单双脉冲信号旋转
OFF= 正转脉冲 + 反转脉冲 ON= 脉冲 + 方向电平
SW5 Motor rotation direction rotation, OFF = Forward rotation ON = Reverse rotation
SW6 single and double pulse signal rotation
OFF = Forward pulse + Reverse pulse ON = Pulse + Direction level
