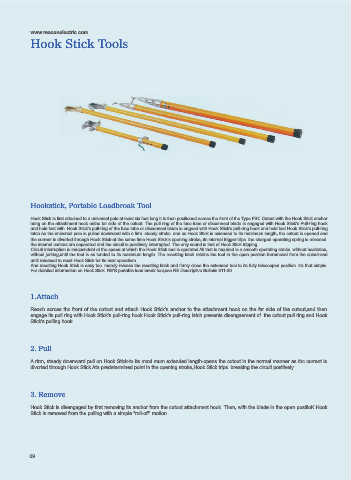

Hook Stick Tools

Hookstick, Portable Loadbroak Tool

Hook Stick is first attached to a universal pole at least six feet long.It is then positioned across the front of the Type FSC Cutout with the Hook Stick anchor
hung on the attachment hook onthe far side of the cutout. The pull ring of the fusc tube or disconnect blade is engaged with Hook Stick's Pull-ring hook
and held fast with Hook Stick's pull-ring of the fuse tube or disconnect blade is engaed with Hook Stick's pull-ring hook and held fast Hook Stick's pull-ring
latch As the universal pole is pulled downward with s firm. steady strokc. and as Hook Stick is exiended to its maximum length, the cutout is opened and
the currenr is diverted through Hook Stick-at the same time Hook Strck's opening stroke, its intcrnal trigger trips. the charged operating spring is released.
the internal contact are separated.and the circuit is positively interrupted. The only sound is that of Hook Stick tripping.
Circuit intcrruption is indcpcndebt of the speed at which the Hook Stick tool is operated All that is rcquired is a smooth operating strokc. without hesitatiou,
withoui jerking,until the tool is ex tended to its maximum length. The resetting latch retains the tool in the open position forremoval from the cuiout-and
until reteased to resct Hook Stick for tis ncxt opcratiom.
And resetting Hook Stick is easy too. merely releasc the resetting latch and firmly close the extended tool to its fully telescoped position. it's that simple.
For detailed information on Hook Stick. RE'S portable load break tool,see RE Descriptive Bulleiin 811-30.

1.Attach

Reach across thc front of the cutout and attach Hook Stick's anchor to the attachment hook on the far side of the cutout,and then
engage its pull ring with Hook Stick's pull-ring hook Hook Stick's pull-ring latch prevents disengaement of the cutout pull ring and Hook
Stick's pulling hook.

2. Pull

A rirm, steady downward pull on Hook Stick-to its maxi mum extended length-opens the cutout in the normal manner as thc current is
divcrted through Hook Stick Ata predetermined point in the opening stroke,Hook Stick trips. breaking the circuit positively.

3. Remove

Hook Stick is disengaged by first removing its anchor from the cutout attachment hook. Then, with the blade in the open positioK Hook
Stick is removed from the pulling with a simple "roll-off" motion.
