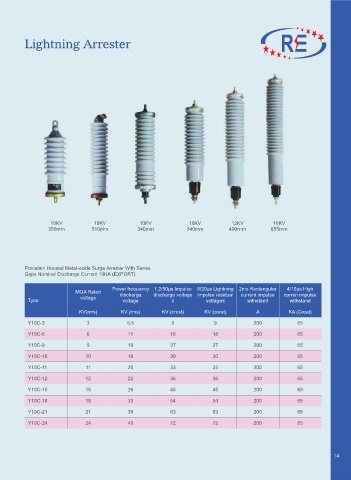

Lightning Arrester
10KV 18KV 10KV 10KV 12KV 18KV
350mm 510mm 340mm 340mm 490rrirn 655rnm
Porcelain Housed Metal-oxide Surge Arrester With Serles
Gaps Nominal Discharge Current 10KA (EXPORT)
Power frequency 1.2/50μs lmpulse 8/20μs Lightning 2ms Rectangular 4/10μs High
MOA Rated discharga discharge voltage impulse residual current impulse curren impulse
Type voltage voltage ≤ voltage≤ withstand withstand
KV(rms) KV (rms) KV (crest) KV (crest) A KA (Creat)
Y10C-3 3 5.5 9 9 200 65
Y10C-6 6 11 18 18 200 65
Y10C-9 9 16 27 27 200 65
Y10C-10 10 18 30 30 200 65
Y10C-11 11 20 33 33 200 65
Y10C-12 12 22 36 36 200 65
Y10C-15 15 26 45 45 200 65
Y10C-18 18 33 54 54 200 65
Y10C-21 21 36 63 63 200 65
Y10C-24 24 40 72 72 200 65
