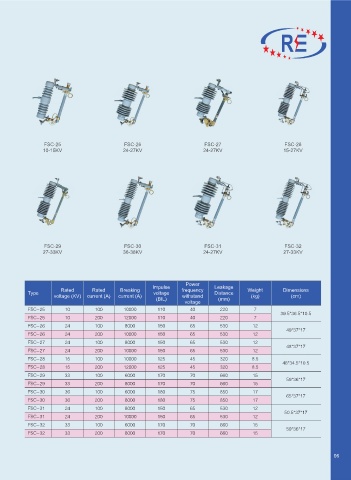

FSC-25 FSC-26 FSC-27 FSC-28
10-15KV 24-27KV 24-27KV 15-27KV

FSC-29 FSC-30 FSC-31 FSC-32
27-33KV 36-38KV 24-27KV 27-33KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) (mm)
voltage
FSC-25 10 100 10000 110 40 220 7
39.5*36.5*10.5
FSC-25 10 200 12000 110 40 220 7
FSC-26 24 100 8000 150 65 530 12
49*37*17
FSC-26 24 200 10000 150 65 530 12
FSC-27 24 100 8000 150 65 530 12
48*37*17
FSC-27 24 200 10000 150 65 530 12
FSC-28 15 100 10000 125 45 320 8.5
48*34.5*10.5
FSC-28 15 200 12000 125 45 320 8.5
FSC-29 33 100 6000 170 70 660 15
59*36*17
FSC-29 33 200 8000 170 70 660 15
FSC-30 36 100 6000 180 75 850 17
65*37*17
FSC-30 36 200 8000 180 75 850 17
FSC-31 24 100 8000 150 65 530 12
50.5*37*17
FSC-31 24 200 10000 150 65 530 12
FSC-32 33 100 6000 170 70 660 15
59*36*17
FSC-32 33 200 8000 170 70 660 15

06
