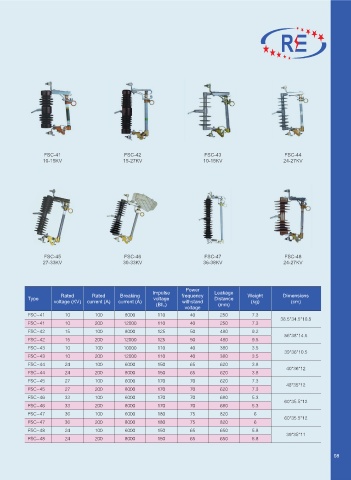

FSC-41 FSC-42 FSC-43 FSC-44
10-15KV 15-27KV 10-15KV 24-27KV

FSC-45 FSC-46 FSC-47 FSC-48
27-33KV 30-33KV 36-38KV 24-27KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) (mm)
voltage
FSC-41 10 100 8000 110 40 250 7.3
38.5*34.5*10.5
FSC-41 10 200 12000 110 40 250 7.3
FSC-42 15 100 8000 125 50 480 9.2
56*38*14.5
FSC-42 15 200 12000 125 50 480 9.5
FSC-43 10 100 10000 110 40 380 3.5
39*36*10.5
FSC-43 10 200 12000 110 40 380 3.5
FSC-44 24 100 6000 150 65 620 3.8
40*36*12
FSC-44 24 200 8000 150 65 620 3.8
FSC-45 27 100 6000 170 70 620 7.3
48*35*12
FSC-45 27 200 8000 170 70 620 7.3
FSC-46 33 100 6000 170 70 680 5.3
60*35.5*12
FSC-46 33 200 8000 170 70 680 5.3
FSC-47 36 100 6000 180 75 820 6
60*35.5*12
FSC-47 36 200 8000 180 75 820 6
FSC-48 24 100 6000 150 65 650 5.8
39*35*11
FSC-48 24 200 8000 150 65 650 5.8
