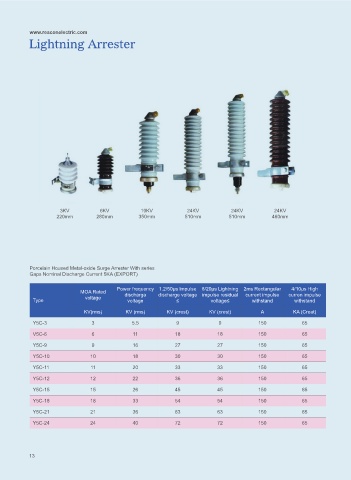

Lightning Arrester
3KV 6KV 10KV 24KV 24KV 24KV
220mm 280mm 350mm 510mm 510mm 460mm
Porcelain Housed Metal-oxide Surge Arrester With series
Gaps Nominal Discharge Current 5KA (EXPORT)
Power frequency 1.2/50μs lmpulse 8/20μs Lightning 2ms Rectangular 4/10μs High
MOA Rated discharga discharge voltage impulse residual current impulse curren impulse
Type voltage voltage ≤ voltage≤ withstand withstand
KV(rms) KV (rms) KV (crest) KV (crest) A KA (Creat)
Y5C-3 3 5.5 9 9 150 65
V5C-6 6 11 18 18 150 65
Y5C-9 9 16 27 27 150 65
Y5C-10 10 18 30 30 150 65
Y5C-11 11 20 33 33 150 65
Y5C-12 12 22 36 36 150 65
Y5C-15 15 26 45 45 150 65
Y5C-18 18 33 54 54 150 65
Y5C-21 21 36 63 63 150 65
Y5C-24 24 40 72 72 150 65
