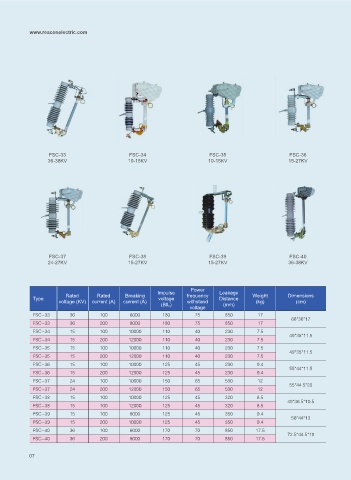

FSC-33 FSC-34 FSC-35 FSC-36
36-38KV 10-15KV 10-15KV 15-27KV

FSC-37 FSC-38 FSC-39 FSC-40
24-27KV 15-27KV 15-27KV 36-38KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) (mm)
voltage
FSC-33 36 100 6000 180 75 850 17
66*36*17
FSC-33 36 200 8000 180 75 850 17
FSC-34 15 100 10000 110 40 230 7.5
49*35*11.5
FSC-34 15 200 12000 110 40 230 7.5
FSC-35 15 100 10000 110 40 230 7.5
49*35*11.5
FSC-35 15 200 12000 110 40 230 7.5
FSC-36 15 100 10000 125 45 230 9.4
55*44*11.5
FSC-36 15 200 12000 125 45 230 9.4
FSC-37 24 100 10000 150 65 530 12
55*44.5*20
FSC-37 24 200 12000 150 65 530 12
FSC-38 15 100 10000 125 45 320 8.5
49*36.5*10.5
FSC-38 15 100 12000 125 45 320 8.5
FSC-39 15 100 8000 125 45 350 9.4
56*44*13
FSC-39 15 200 10000 125 45 350 9.4
FSC-40 36 100 6000 170 70 850 17.5
72.5*44.5*18
FSC-40 36 200 8000 170 70 850 17.5

07
