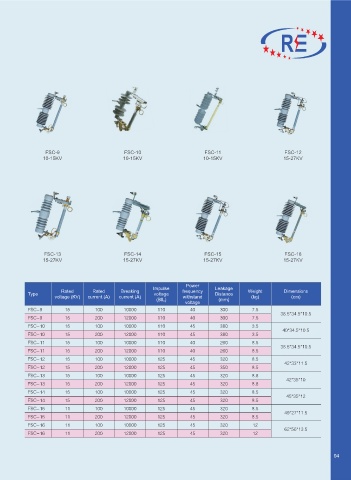

Page 7 - YUEQING REACON ELECTRIC CO., LTD.

FSC-9 FSC-10 FSC-11 FSC-12
10-15KV 10-15KV 10-15KV 15-27KV

FSC-13 FSC-14 FSC-15 FSC-16
15-27KV 15-27KV 15-27KV 15-27KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) voltage (mm)
FSC-9 15 100 10000 110 40 300 7.5
38.5*34.5*10.5
FSC-9 15 200 12000 110 40 300 7.5
FSC-10 15 100 10000 110 45 380 3.5
40*34.5*10.5
FSC-10 15 200 12000 110 45 380 3.5
FSC-11 15 100 10000 110 40 260 8.5
38.5*34.5*10.5
FSC-11 15 200 12000 110 40 260 8.5
FSC-12 15 100 10000 125 45 320 8.5
42*33*11.5
FSC-12 15 200 12000 125 45 350 8.5
FSC-13 15 100 10000 125 45 320 8.8
42*35*10
FSC-13 15 200 12000 125 45 320 8.8
FSC-14 15 100 10000 125 45 320 8.5
45*35*12
FSC-14 15 200 12000 125 45 320 8.5
FSC-15 11 100 10000 125 45 320 8.5
49*27*11.5
FSC-15 11 200 12000 125 45 320 8.5
FSC-16 11 100 10000 125 45 320 12
62*56*13.5
FSC-16 11 200 12000 125 45 320 12
