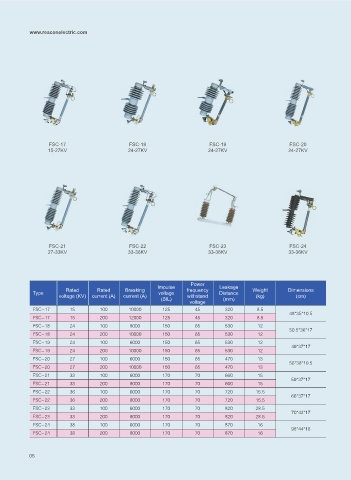

FSC-17 FSC-18 FSC-19 FSC-20
15-27KV 24-27KV 24-27KV 24-27KV

FSC-21 FSC-22 FSC-23 FSC-24
27-33KV 33-36KV 33-36KV 33-36KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) (mm)
voltage
FSC-17 15 100 10000 125 45 320 8.5
48*35*10.5
FSC-17 15 200 12000 125 45 320 8.5
FSC-18 24 100 8000 150 65 530 12
50.5*36*17
FSC-18 24 200 10000 150 65 530 12
FSC-19 24 100 6000 150 65 530 12
49*37*17
FSC-19 24 200 10000 150 65 530 12
FSC-20 27 100 6000 150 65 470 13
56*38*10.5
FSC-20 27 200 10000 150 65 470 13
FSC-21 33 100 6000 170 70 660 15
59*37*17
FSC-21 33 200 8000 170 70 660 15
FSC-22 36 100 6000 170 70 720 15.5
66*37*17
FSC-22 36 200 8000 170 70 720 15.5
FSC-23 33 100 6000 170 70 820 28.5
70*43*17
FSC-23 33 200 8000 170 70 820 28.5
FSC-24 38 100 6000 170 70 870 16
98*44*18
FSC-24 38 200 8000 170 70 870 16

05
