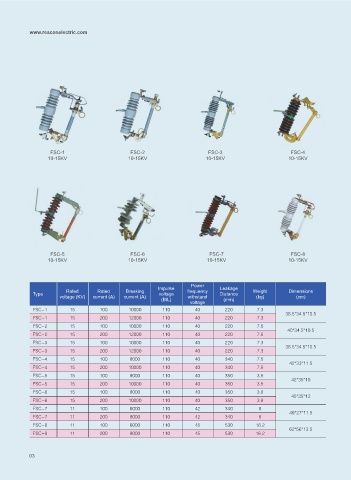

FSC-1 FSC-2 FSC-3 FSC-4
10-15KV 10-15KV 10-15KV 10-15KV

FSC-5 FSC-6 FSC-7 FSC-8
10-15KV 10-15KV 10-15KV 10-15KV

Power
Impulse Leakage
Rated Rated Breaking frequency Weight Dimensions
Type voltage Distance
voltage (KV) current (A) current (A) withstand (kg) (cm)
(BIL) voltage (mm)
FSC-1 15 100 10000 110 40 220 7.3
38.5*34.5*10.5
FSC-1 15 200 12000 110 40 220 7.3
FSC-2 15 100 10000 110 40 220 7.5
40*34.5*10.5
FSC-2 15 200 12000 110 40 220 7.5
FSC-3 15 100 10000 110 40 220 7.3
38.5*34.5*10.5
FSC-3 15 200 12000 110 40 220 7.3
FSC-4 15 100 8000 110 40 340 7.5
42*33*11.5
FSC-4 15 200 10000 110 40 340 7.5
FSC-5 15 100 8000 110 40 350 3.5
42*35*10
FSC-5 15 200 10000 110 40 350 3.5
FSC-6 15 100 8000 110 40 350 3.8
45*35*12
FSC-6 15 200 10000 110 40 350 3.8
FSC-7 11 100 6000 110 42 340 8
49*27*11.5
FSC-7 11 200 8000 110 42 340 8
FSC-8 11 100 6000 110 45 530 16.2
62*56*13.5
FSC-8 11 200 8000 110 45 530 16.2
