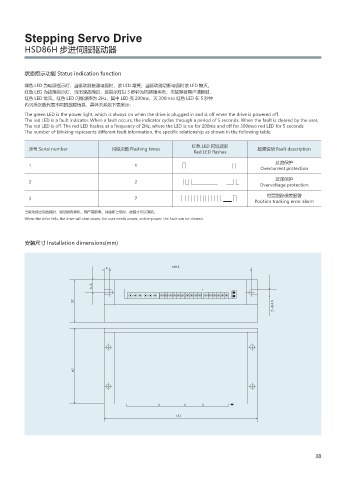

Stepping Servo Drive

HSD86H 步进伺服驱动器

状态指示功能 Status indication function

绿色 LED 为电源指示灯，当驱动器接通电源时，该 LED 常亮；当驱动器切断电源时该 LED 熄灭。
红色 LED 为故障指示灯，当出现故障时，该指示灯以 5 秒钟为周期循环烁；当故障被用户清除时，
红色 LED 常灭。红色 LED 闪烁频率为 2Hz，其中 LED 亮 200ms，灭 300mso 红色 LED 在 5 秒钟
内闪烁次数代表不同的故障信息，具体关系如下表所示：
The green LED is the power light, which is always on when the drive is plugged in and is off when the drive is powered off.
The red LED is a fault indicator. When a fault occurs, the indicator cycles through a period of 5 seconds. When the fault is cleared by the user,
The red LED is off. The red LED flashes at a frequency of 2Hz, where the LED is on for 200ms and off for 300mso red LED for 5 seconds
The number of blinking represents different fault information, the specific relationship as shown in the following table:

红色 LED 闪烁波形
序号 Serial number 闪烁次数 Flashing times 故障说明 Fault description
Red LED flashes
过流保护
1 1
Overcurrent protection
过压保护
2 2
Overvoltage protection
位置跟踪误差报警
3 7
Position tracking error alarm
当驱动器出现故障时，驱动器将停机，用户需断电，并重新上电时，故障才可以清除。
When the drive fails, the drive will shut down, the user needs power, and re-power, the fault can be cleared.

安装尺寸 Installation dimensions(mm)

6 139.5

14.5

52
2-ф4.5

97

151

38
