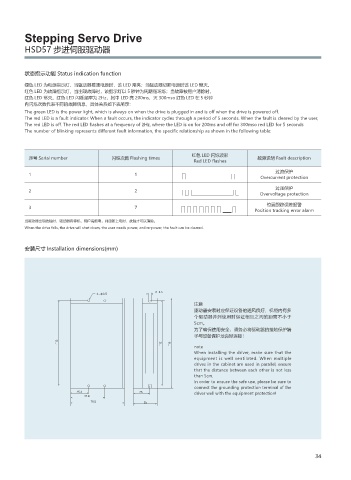

Stepping Servo Drive

HSD57 步进伺服驱动器

状态指示功能 Status indication function

绿色 LED 为电源指示灯，当驱动器接通电源时，该 LED 常亮；当驱动器切断电源时该 LED 熄灭。
红色 LED 为故障指示灯，当出现故障时，该指示灯以 5 秒钟为周期循环烁；当故障被用户清除时，
红色 LED 常灭。红色 LED 闪烁频率为 2Hz，其中 LED 亮 200ms，灭 300mso 红色 LED 在 5 秒钟
内闪烁次数代表不同的故障信息，具体关系如下表所示：
The green LED is the power light, which is always on when the drive is plugged in and is off when the drive is powered off.
The red LED is a fault indicator. When a fault occurs, the indicator cycles through a period of 5 seconds. When the fault is cleared by the user,
The red LED is off. The red LED flashes at a frequency of 2Hz, where the LED is on for 200ms and off for 300mso red LED for 5 seconds
The number of blinking represents different fault information, the specific relationship as shown in the following table:

红色 LED 闪烁波形
序号 Serial number 闪烁次数 Flashing times 故障说明 Fault description
Red LED flashes
过流保护
1 1
Overcurrent protection
过压保护
2 2
Overvoltage protection
位置跟踪误差报警
3 7
Position tracking error alarm
当驱动器出现故障时，驱动器将停机，用户需断电，并重新上电时，故障才可以清除。
When the drive fails, the drive will shut down, the user needs power, and re-power, the fault can be cleared.

安装尺寸 Installation dimensions(mm)

2-4.5
4-ф3.5
注意
驱动器安装时应保证设备的通风良好，机柜内有多
个驱动器并列使用时保证相互之间的距离不小于
5cm。
为了确保使用安全，请务必将驱动器的接地保护端
子与设备保护地良好连接！
112 112 118 note
When installing the driver, make sure that the
equipment is well ventilated. When multiple
drives in the cabinet are used in parallel, ensure
that the distance between each other is not less
than 5cm.
In order to ensure the safe use, please be sure to
connect the grounding protection terminal of the
25.3 25 driver well with the equipment protection!
47.8
75.5 35

34
