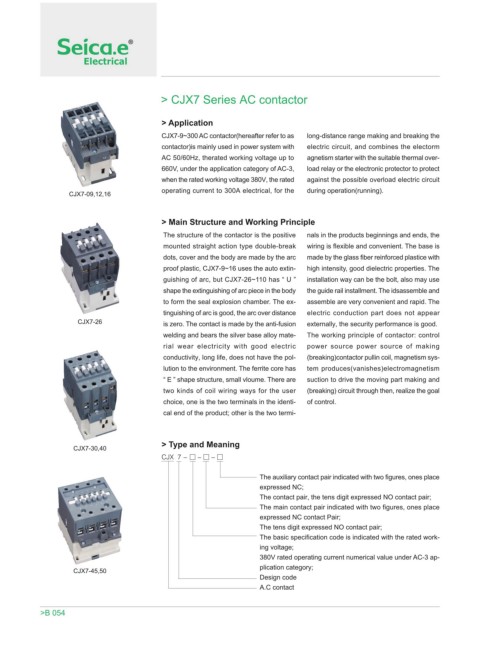

> CJX7 Series AC contactor

> Application
CJX7-9~300 AC contactor(hereafter refer to as long-distance range making and breaking the
contactor)is mainly used in power system with electric circuit, and combines the electorm
AC 50/60Hz, therated working voltage up to agnetism starter with the suitable thermal over-
660V, under the application category of AC-3, load relay or the electronic protector to protect
when the rated working voltage 380V, the rated against the possible overload electric circuit
operating current to 300A electrical, for the during operation(running).
CJX7-09,12,16

> Main Structure and Working Principle

The structure of the contactor is the positive nals in the products beginnings and ends, the
mounted straight action type double-break wiring is flexible and convenient. The base is
dots, cover and the body are made by the arc made by the glass fiber reinforced plastice with
proof plastic, CJX7-9~16 uses the auto extin- high intensity, good dielectric properties. The
guishing of arc, but CJX7-26~110 has “ U ” installation way can be the bolt, also may use
shape the extinguishing of arc piece in the body the guide rail installment. The idsassemble and
to form the seal explosion chamber. The ex- assemble are very convenient and rapid. The
tinguishing of arc is good, the arc over distance electric conduction part does not appear
CJX7-26 is zero. The contact is made by the anti-fusion externally, the security performance is good.
welding and bears the silver base alloy mate- The working principle of contactor: control
rial wear electricity with good electric power source power source of making
conductivity, long life, does not have the pol- (breaking)contactor pullin coil, magnetism sys-
lution to the environment. The ferrite core has tem produces(vanishes)electromagnetism
“ E ” shape structure, small vloume. There are suction to drive the moving part making and
two kinds of coil wiring ways for the user (breaking) circuit through then, realize the goal
choice, one is the two terminals in the identi- of control.
cal end of the product; other is the two termi-

> Type and Meaning
CJX7-30,40
`gu==T=J= J J

The auxiliary contact pair indicated with two figures, ones place
expressed NC;
The contact pair, the tens digit expressed NO contact pair;
The main contact pair indicated with two figures, ones place
expressed NC contact Pair;
The tens digit expressed NO contact pair;
The basic specification code is indicated with the rated work-
ing voltage;
380V rated operating current numerical value under AC-3 ap-
plication category;
CJX7-45,50
Design code
A.C contact
