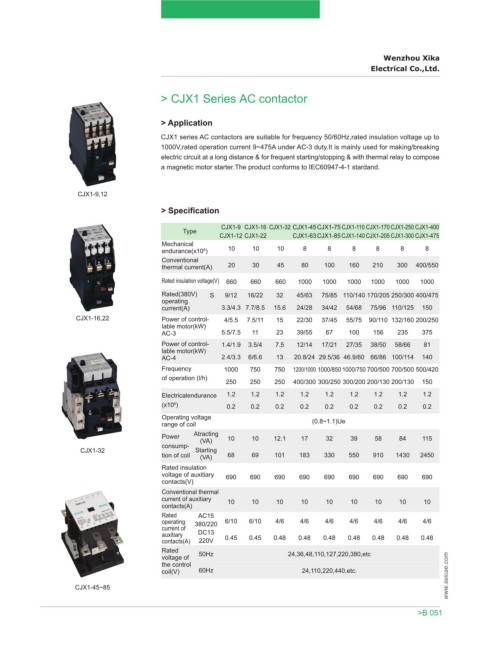

> CJX1 Series AC contactor

> Application
CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to
1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breaking
electric circuit at a long distance & for frequent starting/stopping & with thermal relay to compose
a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.

CJX1-9,12

> Specification

CJX1-9 CJX1-16 CJX1-32 CJX1-45CJX1-75 CJX1-110 CJX1-170 CJX1-250 CJX1-400
Type
CJX1-12 CJX1-22 CJX1-63CJX1-85CJX1-140 CJX1-205 CJX1-300 CJX1-475
Mechanical
endurance(x10 ) 10 10 10 8 8 8 8 8 8
6
Conventional
thermal current(A) 20 30 45 80 100 160 210 300 400/550
Rated insulation voltage(V) 660 660 660 1000 1000 1000 1000 1000 1000
Rated(380V) S 9/12 16/22 32 45/63 75/85 110/140 170/205 250/300 400/475
operating
current(A) 3.3/4.3 7.7/8.5 15.6 24/28 34/42 54/68 75/96 110/125 150
CJX1-16,22 Power of control- 4/5.5 7.5/11 15 22/30 37/45 55/75 90/110 132/160 200/250
lable motor(kW)
AC-3 5.5/7.5 11 23 39/55 67 100 156 235 375
Power of control- 1.4/1.9 3.5/4 7.5 12/14 17/21 27/35 38/50 58/66 81
lable motor(kW)
AC-4 2.4/3.3 6/6.6 13 20.8/24 29.5/36 46.9/60 66/86 100/114 140
Frequency 1000 750 750 1200/1000 1000/850 1000/750 700/500 700/500 500/420
of operation (l/h)
250 250 250 400/300 300/250 300/200 200/130 200/130 150
Electricalendurance 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
(x10 ) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
6
Operating voltage
range of coil (0.8~1.1)Ue
Power Atracting 10 10 12.1 17 32 39 58 84 115
(VA)
consump-
CJX1-32 Starting
tion of coil (VA) 68 69 101 183 330 550 910 1430 2450
Rated insulation
voltage of auxitiary 690 690 690 690 690 690 690 690 690
contacts(V)
Conventional thermal
current of auxitiary 10 10 10 10 10 10 10 10 10
contacts(A)
Rated AC15
operating 380/220 6/10 6/10 4/6 4/6 4/6 4/6 4/6 4/6 4/6
current of
auxitiary DC13 0.45 0.45 0.48 0.48 0.48 0.48 0.48 0.48 0.48
contacts(A) 220V
Rated 50Hz 24,36,48,110,127,220,380,etc
voltage of
the control
coil(V) 60Hz 24,110,220,440,etc. www.seicae.com

CJX1-45~85

>B 051
