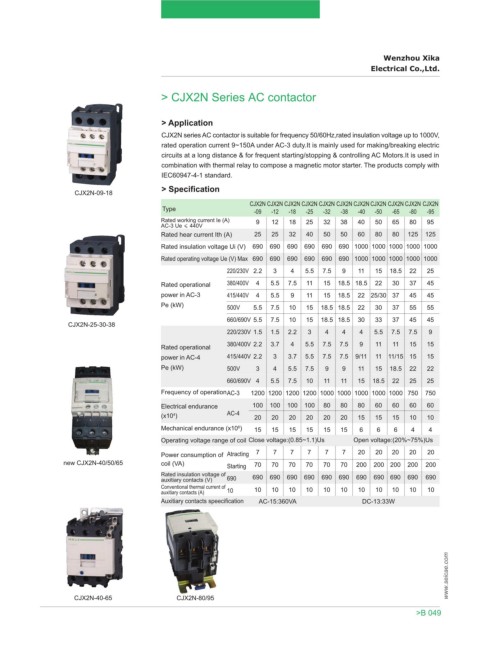

> CJX2N Series AC contactor

> Application
CJX2N series AC contactor is suitable for frequency 50/60Hz,rated insulation voltage up to 1000V,
rated operation current 9~150A under AC-3 duty.It is mainly used for making/breaking electric
circuits at a long distance & for frequent starting/stopping & controlling AC Motors.It is used in
combination with thermal relay to compose a magnetic motor starter. The products comply with
IEC60947-4-1 standard.
> Specification
CJX2N-09-18
CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N CJX2N
Type -09 -12 -18 -25 -32 -38 -40 -50 -65 -80 -95
Rated working current Ie (A) 9 12 18 25 32 38 40 50 65 80 95
AC-3 Ue 440V
Rated hear current Ith (A) 25 25 32 40 50 50 60 80 80 125 125
Rated insulation voltage Ui (V) 690 690 690 690 690 690 1000 1000 1000 1000 1000
Rated operating voltage Ue (V) Max 690 690 690 690 690 690 1000 1000 1000 1000 1000
220/230V 2.2 3 4 5.5 7.5 9 11 15 18.5 22 25

Rated operational 380/400V 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45
power in AC-3 415/440V 4 5.5 9 11 15 18.5 22 25/30 37 45 45
Pe (kW) 500V 5.5 7.5 10 15 18.5 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 18.5 30 33 37 45 45
CJX2N-25-30-38
220/230V 1.5 1.5 2.2 3 4 4 4 5.5 7.5 7.5 9

Rated operational 380/400V 2.2 3.7 4 5.5 7.5 7.5 9 11 11 15 15
power in AC-4 415/440V 2.2 3 3.7 5.5 7.5 7.5 9/11 11 11/15 15 15
Pe (kW) 500V 3 4 5.5 7.5 9 9 11 15 18.5 22 22
660/690V 4 5.5 7.5 10 11 11 15 18.5 22 25 25
Frequency of operation AC-3 1200 1200 1200 1200 1000 1000 1000 1000 1000 750 750
Electrical endurance 100 100 100 100 80 80 80 60 60 60 60
4
(x10 ) AC-4 20 20 20 20 20 20 15 15 15 10 10
Mechanical endurance (x10 ) 15 15 15 15 15 15 6 6 6 4 4
6
Operating voltage range of coil Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us
Power consumption of Atracting 7 7 7 7 7 7 20 20 20 20 20
new CJX2N-40/50/65 coil (VA) Starting 70 70 70 70 70 70 200 200 200 200 200
Rated insulation voltage of 690 690 690 690 690 690 690 690 690 690 690
auxitiary contacts (V) 690
Conventional thermal current of 10 10 10 10 10 10 10 10 10 10 10
auxitiary contacts (A) 10
Auxitiary contacts speecification AC-15:360VA DC-13:33W

www.seicae.com

CJX2N-40-65 CJX2N-80/95
