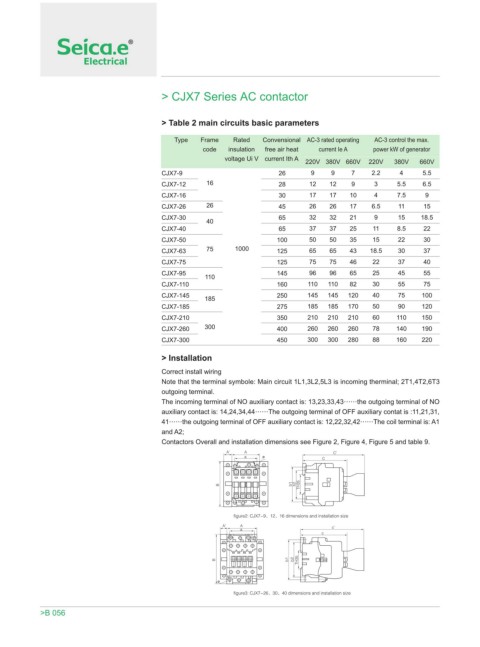

> CJX7 Series AC contactor

> Table 2 main circuits basic parameters

Type Frame Rated Convensional AC-3 rated operating AC-3 control the max.
code insulation free air heat current Ie A power kW of generator
voltage Ui V current Ith A 220V 380V 660V 220V 380V 660V
CJX7-9 26 9 9 7 2.2 4 5.5
CJX7-12 16 28 12 12 9 3 5.5 6.5
CJX7-16 30 17 17 10 4 7.5 9
CJX7-26 26 45 26 26 17 6.5 11 15
CJX7-30 65 32 32 21 9 15 18.5
40
CJX7-40 65 37 37 25 11 8.5 22
CJX7-50 100 50 50 35 15 22 30
CJX7-63 75 1000 125 65 65 43 18.5 30 37
CJX7-75 125 75 75 46 22 37 40
CJX7-95 145 96 96 65 25 45 55
110
CJX7-110 160 110 110 82 30 55 75
CJX7-145 185 250 145 145 120 40 75 100
CJX7-185 275 185 185 170 50 90 120
CJX7-210 350 210 210 210 60 110 150
CJX7-260 300 400 260 260 260 78 140 190
CJX7-300 450 300 300 280 88 160 220
> Installation
Correct install wiring
Note that the terminal symbole: Main circuit 1L1,3L2,5L3 is incoming therminal; 2T1,4T2,6T3
outgoing terminal.
The incoming terminal of NO auxiliary contact is: 13,23,33,43 the outgoing terminal of NO
auxiliary contact is: 14,24,34,44 The outgoing terminal of OFF auxiliary contat is :11,21,31,
41 the outgoing terminal of OFF auxiliary contact is: 12,22,32,42 The coil terminal is: A1
and A2;
Contactors Overall and installation dimensions see Figure 2, Figure 4, Figure 5 and table 9.

>B 056
