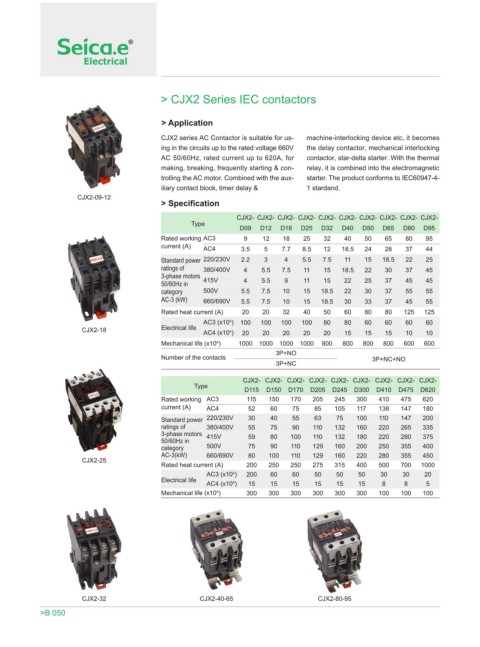

> CJX2 Series IEC contactors

> Application
CJX2 series AC Contactor is suitable for us- machine-interlocking device etc, it becomes
ing in the circuits up to the rated voltage 660V the delay contactor, mechanical interlocking
AC 50/60Hz, rated current up to 620A, for contactor, star-delta starter. With the thermal
making, breaking, frequently starting & con- relay, it is combined into the electromagnetic
trolling the AC motor. Combined with the aux- starter. The product conforms to IEC60947-4-
iliary contact block, timer delay & 1 stardand.
CJX2-09-12
> Specification
CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2-
Type
D09 D12 D18 D25 D32 D40 D50 D65 D80 D95
Rated working AC3 9 12 18 25 32 40 50 65 80 95
current (A) AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standard power 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
ratings of 380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
3-phase motors 415V
50/60Hz in 4 5.5 9 11 15 22 25 37 45 45
category 500V 5.5 7.5 10 15 18.5 22 30 37 55 55
AC-3 (kW) 660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
AC3 (x10 ) 100 100 100 100 80 80 60 60 60 60
4
CJX2-18 Electrical life AC4 (x10 ) 20 20 20 20 20 15 15 15 10 10
4
Mechanical life (x10 ) 1000 1000 1000 1000 800 800 800 800 600 600
4
3P+NO
Number of the contacts 3P+NC+NO
3P+NC
CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2-
Type
D115 D150 D170 D205 D245 D300 D410 D475 D620
Rated working AC3 115 150 170 205 245 300 410 475 620
current (A) AC4 52 60 75 85 105 117 138 147 180
Standard power 220/230V 30 40 55 63 75 100 110 147 200
ratings of 380/400V 55 75 90 110 132 160 220 265 335
3-phase motors 415V 59 80 100 110 132 180 220 280 375
50/60Hz in
category 500V 75 90 110 129 160 200 250 355 400
AC-3(kW) 660/690V 80 100 110 129 160 220 280 355 450
CJX2-25
Rated heat current (A) 200 250 250 275 315 400 500 700 1000
AC3 (x10 ) 200 60 60 50 50 50 30 30 20
4
Electrical life 4
AC4 (x10 ) 15 15 15 15 15 15 8 8 5
4
Mechanical life (x10 ) 300 300 300 300 300 300 100 100 100

CJX2-32 CJX2-40-65 CJX2-80-95
>B 050
