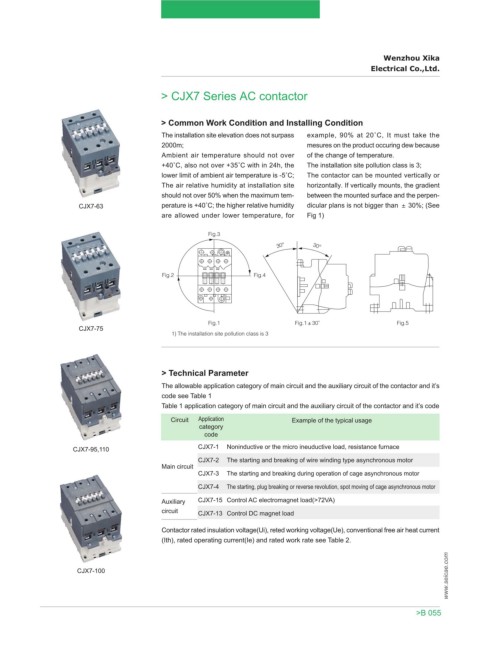

> CJX7 Series AC contactor

> Common Work Condition and Installing Condition
The installation site elevation does not surpass example, 90% at 20˚C, It must take the
2000m; mesures on the product occuring dew because
Ambient air temperature should not over of the change of temperature.
+40˚C, also not over +35˚C with in 24h, the The installation site pollution class is 3;
lower limit of ambient air temperature is -5˚C; The contactor can be mounted vertically or
The air relative humidity at installation site horizontally. If vertically mounts, the gradient
should not over 50% when the maximum tem- between the mounted surface and the perpen-
CJX7-63 perature is +40˚C; the higher relative humidity dicular plans is not bigger than= 30%; (See
are allowed under lower temperature, for Fig 1)

CJX7-75

> Technical Parameter
The allowable application category of main circuit and the auxiliary circuit of the contactor and it’s
code see Table 1
Table 1 application category of main circuit and the auxiliary circuit of the contactor and it’s code
Circuit Application Example of the typical usage
category
code
CJX7-95,110 CJX7-1 Noninductive or the micro ineuductive load, resistance furnace
CJX7-2 The starting and breaking of wire winding type asynchronous motor
Main circuit
CJX7-3 The starting and breaking during operation of cage asynchronous motor
CJX7-4 The starting, plug breaking or reverse revolution, spot moving of cage asynchronous motor
Auxiliary CJX7-15 Control AC electromagnet load(>72VA)
circuit CJX7-13 Control DC magnet load

Contactor rated insulation voltage(Ui), reted working voltage(Ue), conventional free air heat current
(Ith), rated operating current(Ie) and rated work rate see Table 2.

www.seicae.com
CJX7-100

>B 055
