Wenzhou Xika
Electrical Co.,Ltd.

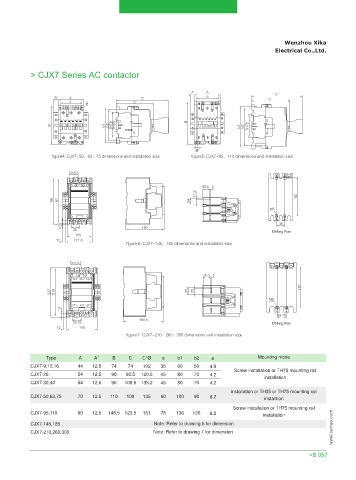

> CJX7 Series AC contactor
Type A A B C C°Ø a b1 b2 ø Mounting mode
CJX7-9,12,16 44 12.5 74 74 102 35 60 50 4.5
Screw installation or TH75 mounting rail
CJX7-26 54 12.5 90 93.5 120.5 45 80 70 4.2 installation
CJX7-30,40 54 12.5 90 108.5 135.2 45 80 70 4.2
installation or TH35 or TH75 mounting rail
CJX7-50,63,75 70 12.5 110 108 135 60 100 90 6.2 installtion
Screw installation or TH75 mounting rail
CJX7-95,110 90 12.5 148.5 123.5 151 78 136 126 6.2 installation
www.seicae.com
CJX7-145,185 Note: Refer to drawing 6 for dimension
CJX7-210,260,300 Note: Refer to drawing 7 for dimension
>B 057
