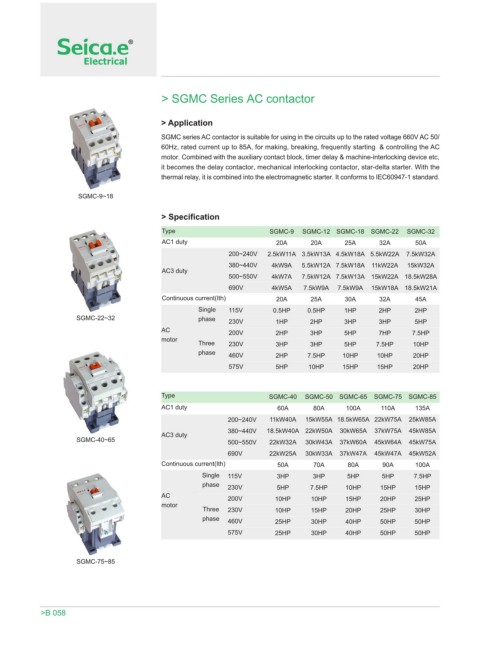

> SGMC Series AC contactor

> Application
SGMC series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50/
60Hz, rated current up to 85A, for making, breaking, frequently starting & controlling the AC
motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc,
it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the
thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.
SGMC-9~18

> Specification
Type SGMC-9 SGMC-12 SGMC-18 SGMC-22 SGMC-32
AC1 duty 20A 20A 25A 32A 50A
200~240V 2.5kW11A 3.5kW13A 4.5kW18A 5.5kW22A 7.5kW32A
380~440V 4kW9A 5.5kW12A 7.5kW18A 11kW22A 15kW32A
AC3 duty
500~550V 4kW7A 7.5kW12A 7.5kW13A 15kW22A 18.5kW28A
690V 4kW5A 7.5kW9A 7.5kW9A 15kW18A 18.5kW21A
Continuous current(Ith) 20A 25A 30A 32A 45A
Single 115V 0.5HP 0.5HP 1HP 2HP 2HP
SGMC-22~32 phase 230V 1HP 2HP 3HP 3HP 5HP
AC 200V 2HP 3HP 5HP 7HP 7.5HP
motor
Three 230V 3HP 3HP 5HP 7.5HP 10HP
phase 460V 2HP 7.5HP 10HP 10HP 20HP
575V 5HP 10HP 15HP 15HP 20HP

Type SGMC-40 SGMC-50 SGMC-65 SGMC-75 SGMC-85
AC1 duty 60A 80A 100A 110A 135A
200~240V 11kW40A 15kW55A 18.5kW65A 22kW75A 25kW85A
380~440V 18.5kW40A 22kW50A 30kW65A 37kW75A 45kW85A
AC3 duty
SGMC-40~65 500~550V 22kW32A 30kW43A 37kW60A 45kW64A 45kW75A
690V 22kW25A 30kW33A 37kW47A 45kW47A 45kW52A
Continuous current(Ith) 50A 70A 80A 90A 100A
Single 115V 3HP 3HP 5HP 5HP 7.5HP
phase 230V 5HP 7.5HP 10HP 15HP 15HP
AC 200V 10HP 10HP 15HP 20HP 25HP
motor
Three 230V 10HP 15HP 20HP 25HP 30HP
phase 460V 25HP 30HP 40HP 50HP 50HP
575V 25HP 30HP 40HP 50HP 50HP

SGMC-75~85

>B 058
