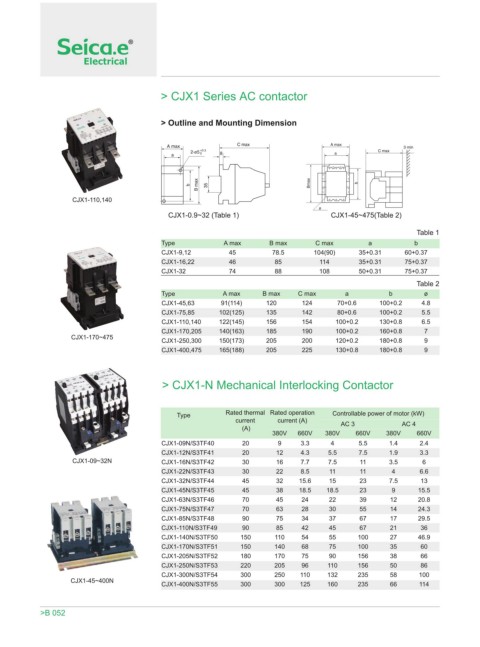

> CJX1 Series AC contactor

> Outline and Mounting Dimension

CJX1-110,140

CJX1-0.9~32 (Table 1) CJX1-45~475(Table 2)
Table 1
Type A max B max C max a b
CJX1-9,12 45 78.5 104(90) 35+0.31 60+0.37
CJX1-16,22 46 85 114 35+0.31 75+0.37
CJX1-32 74 88 108 50+0.31 75+0.37
Table 2
Type A max B max C max a b ø
CJX1-45,63 91(114) 120 124 70+0.6 100+0.2 4.8
CJX1-75,85 102(125) 135 142 80+0.6 100+0.2 5.5
CJX1-110,140 122(145) 156 154 100+0.2 130+0.8 6.5
CJX1-170,205 140(163) 185 190 100+0.2 160+0.8 7
CJX1-170~475 CJX1-250,300 150(173) 205 200 120+0.2 180+0.8 9
CJX1-400,475 165(188) 205 225 130+0.8 180+0.8 9

> CJX1-N Mechanical Interlocking Contactor

Type Rated thermal Rated operation Controllable power of motor (kW)
current current (A) AC 3 AC 4
(A)
380V 660V 380V 660V 380V 660V
CJX1-09N/S3TF40 20 9 3.3 4 5.5 1.4 2.4
CJX1-12N/S3TF41 20 12 4.3 5.5 7.5 1.9 3.3
CJX1-09~32N CJX1-16N/S3TF42 30 16 7.7 7.5 11 3.5 6
CJX1-22N/S3TF43 30 22 8.5 11 11 4 6.6
CJX1-32N/S3TF44 45 32 15.6 15 23 7.5 13
CJX1-45N/S3TF45 45 38 18.5 18.5 23 9 15.5
CJX1-63N/S3TF46 70 45 24 22 39 12 20.8
CJX1-75N/S3TF47 70 63 28 30 55 14 24.3
CJX1-85N/S3TF48 90 75 34 37 67 17 29.5
CJX1-110N/S3TF49 90 85 42 45 67 21 36
CJX1-140N/S3TF50 150 110 54 55 100 27 46.9
CJX1-170N/S3TF51 150 140 68 75 100 35 60
CJX1-205N/S3TF52 180 170 75 90 156 38 66
CJX1-250N/S3TF53 220 205 96 110 156 50 86
CJX1-300N/S3TF54 300 250 110 132 235 58 100
CJX1-45~400N
CJX1-400N/S3TF55 300 300 125 160 235 66 114

>B 052
