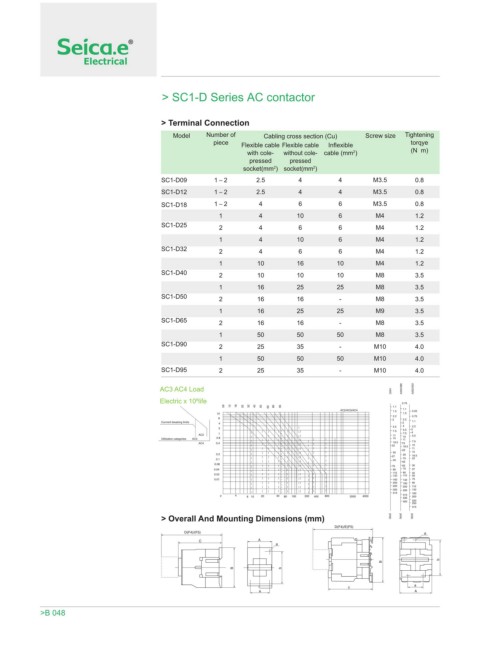

> SC1-D Series AC contactor
> Terminal Connection
Model Number of Cabling cross section (Cu) Screw size Tightening
piece Flexible cable Flexible cable Inflexible torqye
with cole- without cole- cable (mm ) (N m)
2
pressed pressed
socket(mm ) socket(mm )
2
2
SC1-D09 1 2 2.5 4 4 M3.5 0.8
SC1-D12 1 2 2.5 4 4 M3.5 0.8
SC1-D18 1 2 4 6 6 M3.5 0.8
1 4 10 6 M4 1.2
SC1-D25 2 4 6 6 M4 1.2
1 4 10 6 M4 1.2
SC1-D32 2 4 6 6 M4 1.2
1 10 16 10 M4 1.2
SC1-D40 2 10 10 10 M8 3.5
1 16 25 25 M8 3.5
SC1-D50 2 16 16 - M8 3.5
1 16 25 25 M9 3.5
SC1-D65 2 16 16 - M8 3.5
1 50 50 50 M8 3.5
SC1-D90 2 25 35 - M10 4.0
1 50 50 50 M10 4.0
SC1-D95 2 25 35 - M10 4.0
AC3 AC4 Load
Electric x 10 life
6
> Overall And Mounting Dimensions (mm)
>B 048
