P. 54

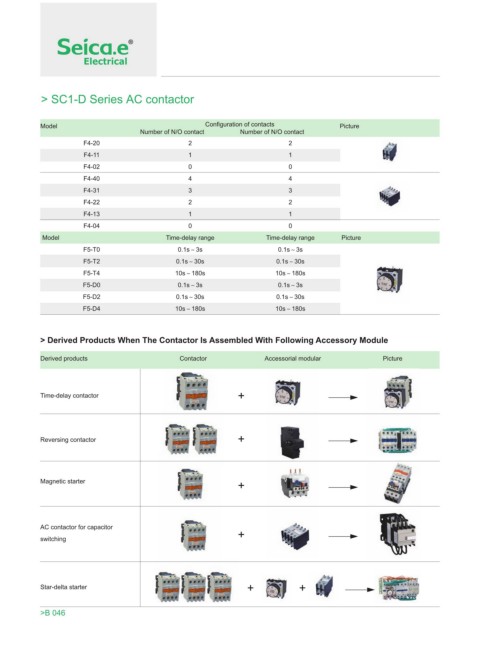

> SC1-D Series AC contactor
Model Configuration of contacts Picture
Number of N/O contact Number of N/O contact
F4-20 2 2
F4-11 1 1
F4-02 0 0
F4-40 4 4
F4-31 3 3
F4-22 2 2
F4-13 1 1
F4-04 0 0
Model Time-delay range Time-delay range Picture
F5-T0 0.1s 3s 0.1s 3s
F5-T2 0.1s 30s 0.1s 30s
F5-T4 10s 180s 10s 180s
F5-D0 0.1s 3s 0.1s 3s
F5-D2 0.1s 30s 0.1s 30s
F5-D4 10s 180s 10s 180s
> Derived Products When The Contactor Is Assembled With Following Accessory Module
Derived products Contactor Accessorial modular Picture
Time-delay contactor +
Reversing contactor +
Magnetic starter
+
AC contactor for capacitor
switching +
Star-delta starter + +
>B 046
