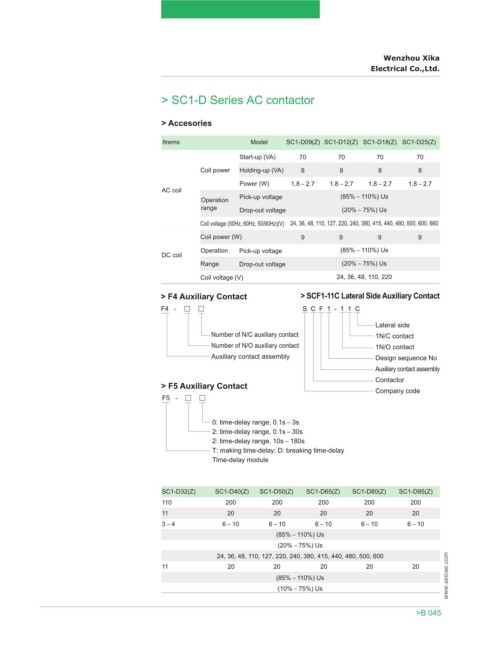

> SC1-D Series AC contactor

> Accesories

Itrems Model SC1-D09(Z) SC1-D12(Z) SC1-D18(Z) SC1-D25(Z)
Start-up (VA) 70 70 70 70
Coil power Holding-up (VA) 8 8 8 8
Power (W) 1.8 2.7 1.8 2.7 1.8 2.7 1.8 2.7
AC coil
Operation Pick-up voltage (85% 110%) Us
range Drop-out voltage (20% 75%) Us

Coil voltage (50Hz, 60Hz, 50/60Hz)(V) 24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600, 660
Coil power (W) 9 9 9 9
Operation Pick-up voltage (85% 110%) Us
DC coil
Range Drop-out voltage (20% 75%) Us

Coil voltage (V) 24, 36, 48, 110, 220
> F4 Auxiliary Contact > SCF1-11C Lateral Side Auxiliary Contact
F4 - S C F 1 - 1 1 C

Lateral side
Number of N/C auxiliary contact 1N/C contact
Number of N/O auxiliary contact 1N/O contact
Auxiliary contact assembly Design sequence No
Auxiliary contact assembly
Contactor
> F5 Auxiliary Contact
Company code
F5 -

0: time-delay range, 0.1s 3s
2: time-delay range, 0.1s 30s
2: time-delay range, 10s 180s
T: making time-delay; D: breaking time-delay
Time-delay module

SC1-D32(Z) SC1-D40(Z) SC1-D50(Z) SC1-D65(Z) SC1-D80(Z) SC1-D95(Z)
110 200 200 200 200 200
11 20 20 20 20 20
3 4 6 10 6 10 6 10 6 10 6 10
(85% 110%) Us
(20% 75%) Us
24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600
11 20 20 20 20 20
(85% 110%) Us www.seicae.com
(10% 75%) Us
