Page 21 - YUEQING REACON ELECTRIC CO., LTD.

5JNF喋NT喌

. . Ð Ð
Ð

$VSSFOU

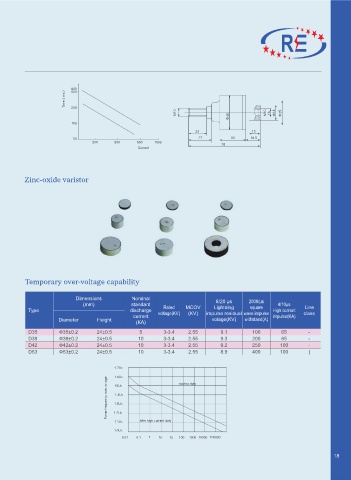

Zinc-oxide varistor

Temporary over-voltage capability

Dimensions Nominal 8/20 μs 2000/μs
(mm) standard 4/10μs
Type discharge Rated MCOV Lightning square High current Line
current voltage(KV) (KV) impulse residual wave impulse impulse(KA) class
Diameter Height volage(KV) withstand(A)
(KA)
D35 Ф35±0.2 24±0.5 5 3-3.4 2.55 9.1 100 65 -
D38 Ф38±0.2 24±0.5 10 3-3.4 2.55 9.3 200 65 -
D42 Ф42±0.2 24±0.5 10 3-3.4 2.55 9.2 250 100 -
D53 Ф53±0.2 24±0.5 10 3-3.4 2.55 8.9 400 100 |

6D
6D
1PXFS GSFRVFODZ PWFS WPMUBHF 6D OPPSJPS EVUZ
6D
6D

6D
6D BGUFS IJHI DVSSFOU EVUZ
6D

18
