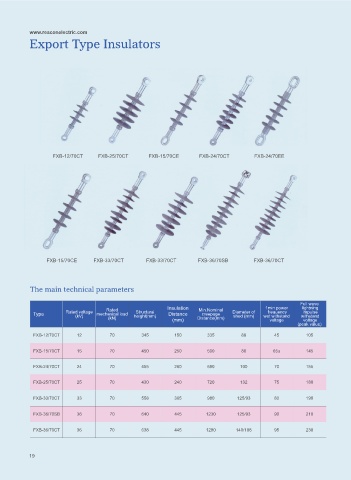

Export Type Insulators
FXB-12/70CT FXB-25/70CT FXB-15/70CE FXB-24/70CT FXB-24/70EE
FXB-15/70CE FXB-33/70CT FXB-33/70CT FXB-36/70SB FXB-36/70CT
The main technical parameters
Full wave
Insulation
1min power
lightning
Min.Nominal
Rated
Structural
freauency
impulse
creepage
Type Rated voltage mechanical load height(mm) Distance Distance(mm) Diameter of wet withstand withstand
(kV)
shed (mm)
(kN)
(mm)
voltage
voltage
(peak value)
FXB-12/70CT 12 70 345 150 335 88 45 105
FXB-15/70CT 15 70 450 250 500 88 65u 145
FXB-24/70CT 24 70 455 260 680 100 70 155
FXB-25/70CT 25 70 430 240 720 132 75 180
FXB-33/70CT 33 70 558 365 980 125/93 80 190
FXB-36/70SB 36 70 640 445 1230 125/93 90 210
FXB-36/70CT 36 70 638 445 1280 140/108 95 230
