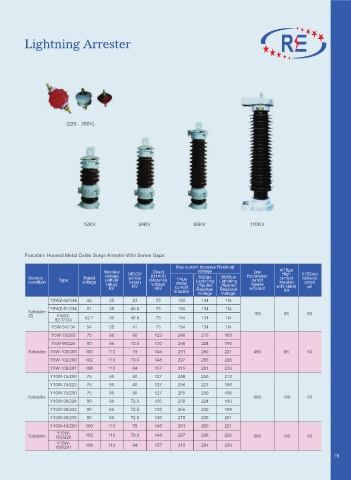

Page 19 - YUEQING REACON ELECTRIC CO., LTD.

Lightning Arrester

(220、380V)

12KV 24KV 66KV 110KV

Porcelain Housed Metal Oxide Surge Arrester With Series Gaps

Max current impusse Residual
Nominal MCOV Direct voltage 2ms 4/10μs 0.75Direct
High
(U1mA)
Service Type Rated voltage (virtval reference 1/4μs 8/20μs 30/60μs Rectangular current reference
(virtval
current
condition voltage value) value) voltage steep Lightning Lightning impulse impulse current
impulse
impulse
KV KV ≥Kv current Residual Residual withstand with stand μA
impulse Voltage Voltage KA
Y5WZ-42/134 42 35 23 73 154 134 114
Y5WZ-51/134 51 35 40.8 73 154 134 114
Substation
(Z) Y5WZ- 150 65 50
52.7/134 52.7 35 40.8 73 154 134 114
Y5W-54/134 54 35 41 73 154 134 114
Y5W-75/215 75 66 60 123 248 215 183
Y5W-90/224 90 66 72.5 130 258 224 190
Substation Y5W-100/260 100 110 78 145 291 260 221 400 65 50
Y5W-102/260 102 110 79.6 148 297 266 226
Y5W-108/281 108 110 84 157 315 281 239
Y10W-75/250 75 66 60 127 288 250 213
Y10W-75/223 75 66 60 127 256 223 190
Y10W-75/230 75 66 60 127 265 230 196
Substation 600 100 50
Y10W-90/224 90 66 72.5 130 258 224 190
Y10W-90/232 90 66 72.5 130 266 232 198
Y10W-90/235 90 66 72.5 130 270 235 201
Y10W-10/260 100 110 78 145 291 260 221
Y10W-
Substation 102/226 102 110 79.6 148 297 266 226 600 100 50
Y10W-
108/281 108 110 84 157 315 281 239
16
