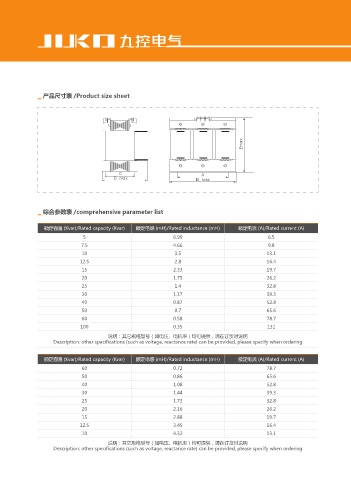

▁ 产品尺寸表 /Product size sheet

&NBY

$ "
% NBY # NBY

▁ 综合参数表 /comprehensive parameter list

额定容量 (Kvar)/Rated capacity (Kvar) 额定电感 (mH)/Rated inductance (mH) 额定电流 (A)/Rated current (A)
5 6.99 6.5
7.5 4.66 9.8
10 3.5 13.1
12.5 2.8 16.4
15 2.33 19.7
20 1.75 26.2
25 1.4 32.8
30 1.17 39.3
40 0.87 52.8
50 0.7 65.6
60 0.58 78.7
100 0.35 131
说明：其它规格型号（如电压、电抗率）均可提供，请在订货时说明
Description: other specifications (such as voltage, reactance rate) can be provided, please specify when ordering

额定容量 (Kvar)/Rated capacity (Kvar) 额定电感 (mH)/Rated inductance (mH) 额定电流 (A)/Rated current (A)
60 0.72 78.7
50 0.86 65.6
40 1.08 52.8
67
30 1.44 39.3
25 1.73 32.8
20 2.16 26.2
15 2.88 19.7
12.5 3.45 16.4
10 4.32 13.1
说明：其它规格型号（如电压、电抗率）均可提供，请在订货时说明
Description: other specifications (such as voltage, reactance rate) can be provided, please specify when ordering
