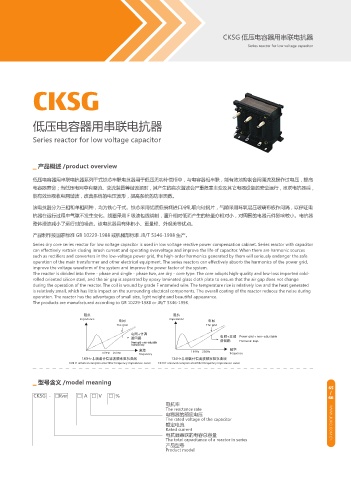

CKSG 低压电容器用串联电抗器
Series reactor for low voltage capacitor

CKSG

低压电容器用串联电抗器

Series reactor for low voltage capacitor

▁ 产品概述 /product overview

低压电容器用串联电抗器系列干式铁芯串联电抗器用于低压无功补偿柜中，与电容器相串联，能有效地抑制合闸涌流及操作过电压，提高
电容器寿命；当低压电网中有整流、变流装置等谐波源时，其产生的高次谐波会严重危害主变及其它电器设备的安全运行，串联电抗器后，
能有效地吸收电网谐波，改善系统的电压波形，提高系统的功率因数。

该电抗器分为三相和单相两种，均为铁心干式。铁芯采用优质低损耗进口冷轧取向硅钢片，气隙采用环氧层压玻璃布板作间隔，以保证电
抗器在运行过程中气隙不发生变化。线圈采用 F 级漆包线绕制，温升相对低而产生的热量亦相对小，对周围的电器元件影响较小。电抗器
整体浸漆减小了运行时的噪音。该电抗器具有体积小、重量轻、外观美等优点。

产品制作按国家标准 GB 10229-1988 或机械部标准 JB/T 5346-1998 生产。
Series dry core series reactor for low voltage capacitor is used in low voltage reactive power compensation cabinet. Series reactor with capacitor
can effectively restrain closing inrush current and operating overvoltage and improve the life of capacitor. When there are harmonic sources
such as rectifiers and converters in the low-voltage power grid, the high-order harmonics generated by them will seriously endanger the safe
operation of the main transformer and other electrical equipment. The series reactors can effectively absorb the harmonics of the power grid,
improve the voltage waveform of the system and improve the power factor of the system.
The reactor is divided into three - phase and single - phase two, are dry - core type. The core adopts high-quality and low-loss imported cold-
rolled oriented silicon steel, and the air gap is separated by epoxy laminated glass cloth plate to ensure that the air gap does not change
during the operation of the reactor. The coil is wound by grade F enameled wire. The temperature rise is relatively low and the heat generated
is relatively small, which has little impact on the surrounding electrical components. The overall coating of the reactor reduces the noise during
operation. The reactor has the advantages of small size, light weight and beautiful appearance.
The products are manufactured according to GB 10229-1988 or JB/T 5346-1998.

᫽ઇ ᫽ઇ
JNQFEBODF JNQFEBODF
ႂᎩ ႂᎩ
5IF HSJE 5IF HSJE
ႂᎩ ᭣ុ
ះٿᡸ ႂᎩ ᭣ុ 1PXFS HSJE OPO BEKVTUBCMF
1PXFS HSJE OPO BEKVTUBCMF ះٿᡸ )BSNPOJD MPPQ
)BSNPOJD MPPQ
ᮟည 189Hz 250Hz ᮟည
189Hz 250Hz GSFRVFODZ GSFRVFODZ
)[᭣ុះᛩϩ໙จᮟည᫽ઇఛጲ )[᭣ុះᛩϩ໙จᮟည᫽ઇఛጲ
)[ VOUVOFE DPNQFOTBUFE GJMUFS GSFRVFODZ JNQFEBODF DVSWF )[ VOUVOFE DPNQFOTBUFE GJMUFS GSFRVFODZ JNQFEBODF DVSWF

▁ 型号含义 /model meaning
65
/
CKSG - □Kvar □ A □ V □ % 66
电抗率
The reactance rate
电容器的额定电压
The rated voltage of the capacitor
额定电流 WWW.JIUKO.COM.CN
Rated current
电抗器串联的电容总容量
The total capacitance of a reactor in series
产品型号
Product model
