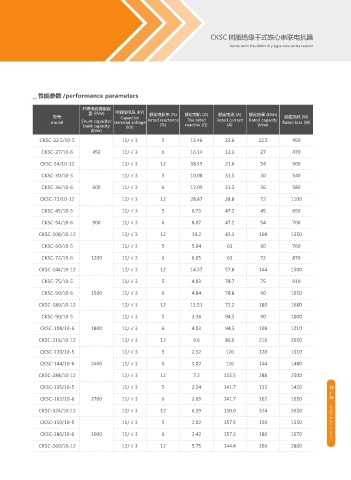

CKSC 树脂绝缘干式铁心串联电抗器
Series resin insulation dry-type core series reactor

▁ 性能参数 /performance parameters

并联电容器组容
量 (kVar) 电容端电压 (kV) 额定电抗率 (%) 额定电抗 (Ω) 额定电流 (A) 额定容量 (kVar)
型号 Capacitor 额定损耗 (W)
model Shunt capacitor terminal voltage Rated reactance The rated Rated current Rated capacity Rated loss (W)
bank capacity (kV) (%) reactive (Ω) (A) (kVar)
(kVar)
CKSC-22.5/10-5 11/ √ 3 5 13.46 23.6 22.5 450
CKSC-27/10-6 450 11/ √ 3 6 16.14 12.3 27 470
CKSC-54/10-12 12/ √ 3 12 38.49 21.6 54 900

CKSC-30/10-5 11/ √ 3 5 10.08 31.5 30 540

CKSC-36/10-6 600 11/ √ 3 6 12.09 31.5 36 580
CKSC-72/10-12 12/ √ 3 12 28.87 28.8 72 1100

CKSC-45/10-5 11/ √ 3 5 6.73 47.2 45 650
CKSC-54/10-6 900 11/ √ 3 6 8.07 47.2 54 700

CKSC-108/10-12 12/ √ 3 12 19.2 43.3 108 1350
CKSC-60/10-5 11/ √ 3 5 5.04 63 60 760

CKSC-72/10-6 1200 11/ √ 3 6 6.05 63 72 870
CKSC-144/10-12 12/ √ 3 12 14.37 57.8 144 1500

CKSC-75/10-5 11/ √ 3 5 4.03 78.7 75 910
CKSC-90/10-6 1500 11/ √ 3 6 4.84 78.8 90 1050

CKSC-180/10-12 12/ √ 3 12 11.51 72.2 180 1680
CKSC-90/10-5 11/ √ 3 5 3.36 94.5 90 1000

CKSC-108/10-6 1800 11/ √ 3 6 4.03 94.5 108 1210
CKSC-216/10-12 12/ √ 3 12 9.6 86.6 216 2050

CKSC-120/10-5 11/ √ 3 5 2.52 126 120 1310

CKSC-144/10-6 2400 11/ √ 3 6 3.02 126 144 1480
CKSC-288/10-12 12/ √ 3 12 7.2 115.5 288 2500
CKSC-135/10-5 11/ √ 3 5 2.24 141.7 135 1420 71
/
CKSC-162/10-6 2700 11/ √ 3 6 2.69 141.7 162 1650 72

CKSC-324/10-12 12/ √ 3 12 6.39 130.0 324 2650
CKSC-150/10-5 11/ √ 3 5 2.02 157.5 150 1550 WWW.JIUKO.COM.CN

CKSC-180/10-6 3000 11/ √ 3 6 2.42 157.3 180 1670
CKSC-360/10-12 12/ √ 3 12 5.75 144.4 360 2800
