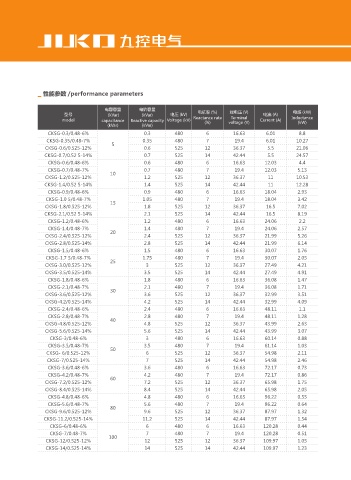

▁ 性能参数 /performance parameters

电容容量 电抗容量
型号 (kVar) (kVar) 电压 (kV) 电抗率 (%) 端电压 (V) 电流 (A) 电感 (kW)
Terminal
model capacitance Reactive capacity Voltage (kV) Reactance rate voltage (V) Current (A) Inductance

(%)
(kW)

(kVar) (kVar)
CKSG-0.3/0.48-6% 0.3 480 6 16.63 6.01 8.8
CKSG-0.35/0.48-7% 0.35 480 7 19.4 6.01 10.27
CKSG-0.6/0.525-12% 5 0.6 525 12 36.37 5.5 21.06
CKSG-0.7/0.52 5-14% 0.7 525 14 42.44 5.5 24.57
CKSG-0.6/0.48-6% 0.6 480 6 16.63 12.03 4.4
CKSG-0.7/0.48-7% 0.7 480 7 19.4 12.03 5.13
CKSG-1.2/0.525-12% 10 1.2 525 12 36.37 11 10.53
CKSG-1.4/0.52 5-14% 1.4 525 14 42.44 11 12.28
CKSG-0.9/0.48-6% 0.9 480 6 16.63 18.04 2.93
CKSG-1.0 5/0.48-7% 15 1.05 480 7 19.4 18.04 3.42
CKSG-1.8/0.525-12% 1.8 525 12 36.37 16.5 7.02
CKSG-2.1/0.52 5-14% 2.1 525 14 42.44 16.5 8.19
CKSG-1.2/0.48-6% 1.2 480 6 16.63 24.06 2.2
CKSG-1.4/0.48-7% 1.4 480 7 19.4 24.06 2.57
CKSG-2.4/0.525-12% 20 2.4 525 12 36.37 21.99 5.26
CKSG-2.8/0.525-14% 2.8 525 14 42.44 21.99 6.14
CKSG-1.5/0.48-6% 1.5 480 6 16.63 30.07 1.76
CKSG-1.7 5/0.48-7% 1.75 480 7 19.4 30.07 2.05
CKSG-3.0/0.525-12% 25 3 525 12 36.37 27.49 4.21
CKSG-3.5/0.525-14% 3.5 525 14 42.44 27.49 4.91
CKSG-1.8/0.48-6% 1.8 480 6 16.63 36.08 1.47
CKSG-2.1/0.48-7% 30 2.1 480 7 19.4 36.08 1.71
CKSG-3.6/0.525-12% 3.6 525 12 36.37 32.99 3.51
CKSG-4.2/0.525-14% 4.2 525 14 42.44 32.99 4.09
CKSG-2.4/0.48-6% 2.4 480 6 16.63 48.11 1.1
CKSG-2.8/0.48-7% 2.8 480 7 19.4 48.11 1.28
CKSG-4.8/0.525-12% 40 4.8 525 12 36.37 43.99 2.63
CKSG-5.6/0.525-14% 5.6 525 14 42.44 43.99 3.07
CKSG-3/0.48-6% 3 480 6 16.63 60.14 0.88
CKSG-3.5/0.48-7% 3.5 480 7 19.4 61.14 1.03
CKSG- 6/0.525-12% 50 6 525 12 36.37 54.98 2.11
CKSG-7/0.525-14% 7 525 14 42.44 54.98 2.46
CKSG-3.6/0.48-6% 3.6 480 6 16.63 72.17 0.73
CKSG-4.2/0.48-7% 60 4.2 480 7 19.4 72.17 0.86
CKSG-7.2/0.525-12% 7.2 525 12 36.37 65.98 1.75
CKSG-8.4/0.525-14% 8.4 525 14 42.44 65.98 2.05 69
CKSG-4.8/0.48-6% 4.8 480 6 16.63 96.22 0.55
CKSG-5.6/0.48-7% 5.6 480 7 19.4 96.22 0.64
CKSG-9.6/0.525-12% 80 9.6 525 12 36.37 87.97 1.32
CKSG-11.2/0.525-14% 11.2 525 14 42.44 87.97 1.54
CKSG-6/0.48-6% 6 480 6 16.63 120.28 0.44
CKSG-7/0.48-7% 7 480 7 19.4 120.28 0.51
CKSG-12/0.525-12% 100 12 525 12 36.37 109.97 1.05
CKSG-14/0.525-14% 14 525 14 42.44 109.97 1.23
