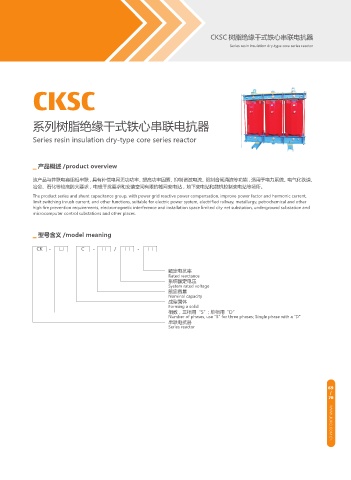

CKSC 树脂绝缘干式铁心串联电抗器
Series resin insulation dry-type core series reactor

CKSC

系列树脂绝缘干式铁心串联电抗器

Series resin insulation dry-type core series reactor

▁ 产品概述 /product overview

该产品与并联电容组相串联，具有补偿电网无功功率、提高功率因素、抑制谐波电流、限制合闸涌流等功能，适用于电力系统、电气化铁道、
冶金、石化等较高防火要求，电磁干扰要求和安装空间有限的城网变电站，地下变电站和微机控制变电站等场所。

The product series and shunt capacitance group, with power grid reactive power compensation, improve power factor and harmonic current,
limit switching inrush current, and other functions, suitable for electric power system, electrified railway, metallurgy, petrochemical and other
high fire prevention requirements, electromagnetic interference and installation space limited city net substation, underground substation and
microcomputer control substations and other places.

▁ 型号含义 /model meaning

CK - □ C - □ / □ - □

额定电抗率
Rated reactance
系统额定电压
System rated voltage
额定容量
Nominal capacity
成型固体
Forming a solid
相数，三相用“S”; 单相用“D”
Number of phases, use "S" for three phases; Single phase with a "D"
串联电抗器
Series reactor
