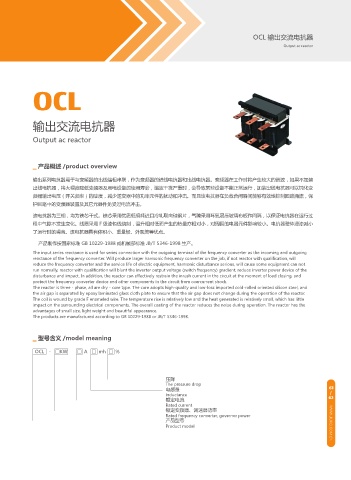

OCL 输出交流电抗器
Output ac reactor

OCL

输出交流电抗器

Output ac reactor

▁ 产品概述 /product overview

输出系列电抗器用于与变频器的出线端相串联，作为变频器的进线电抗器和出线电抗器。变频器在工作时将产生较大的谐波，如果不加装
出线电抗器，将大幅度降低变频器及用电设备的使用寿命，谐波干扰严重时，会导致某些设备不能正常运行，加装出线电抗器可以钝化变
频器输出电压（开关频率）的陡度，减少逆变器中的功率元件的扰动和冲击。而且该电抗器在负载合闸瞬间能够有效地抑制回路涌流，保
护回路中的变频器装置及其它元器件免受过电流冲击。

该电抗器为三相，均为铁芯干式。铁芯采用优质低损耗进口冷轧取向硅钢片，气隙采用环氧层压玻璃布板作间隔，以保证电抗器在运行过
程中气隙不发生变化。线圈采用 F 级漆包线绕制，温升相对低而产生的热量亦相对小，对周围的电器元件影响较小。电抗器整体浸漆减小
了运行时的噪音。该电抗器具有体积小、重量轻、外观美等优点。

产品制作按国家标准 GB 10229-1988 或机械部标准 JB/T 5346-1998 生产。
The input series reactance is used for series connection with the outgoing terminal of the frequency converter as the incoming and outgoing
reactance of the frequency converter. Will produce larger harmonic frequency converter on the job, if not reactor with qualification, will
reduce the frequency converter and the service life of electric equipment, harmonic disturbance serious, will cause some equipment can not
run normally, reactor with qualification will blunt the inverter output voltage (switch frequency) gradient, reduce inverter power device of the
disturbance and impact. In addition, the reactor can effectively restrain the inrush current in the circuit at the moment of load closing, and
protect the frequency converter device and other components in the circuit from overcurrent shock.
The reactor is three - phase, all are dry - core type. The core adopts high-quality and low-loss imported cold-rolled oriented silicon steel, and
the air gap is separated by epoxy laminated glass cloth plate to ensure that the air gap does not change during the operation of the reactor.
The coil is wound by grade F enameled wire. The temperature rise is relatively low and the heat generated is relatively small, which has little
impact on the surrounding electrical components. The overall coating of the reactor reduces the noise during operation. The reactor has the
advantages of small size, light weight and beautiful appearance.
The products are manufactured according to GB 10229-1988 or JB/T 5346-1998.

▁ 型号含义 /model meaning

OCL - □KW □ A □ mh □ %

压降
The pressure drop
电感量 61
/
inductance 62
额定电流
Rated current
额定变频器、调速器功率
Rated frequency converter, governor power
产品型号
