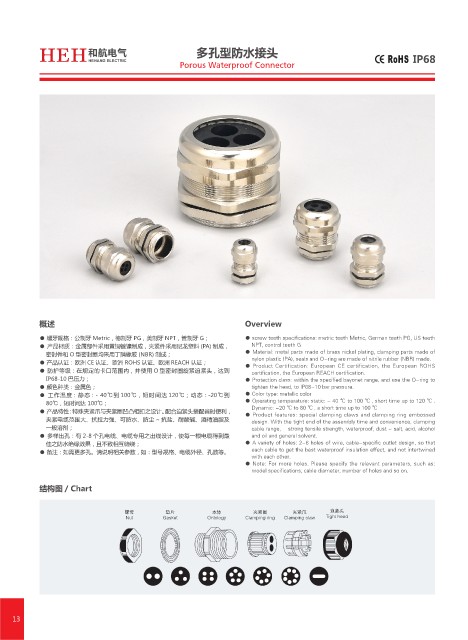

HEH 和航电气 多孔型防水接头
HEHANG ELECTRIC
Porous Waterproof Connector

概述 Overview

● 螺牙规格：公制牙 Metric，德制牙 PG，美制牙 NPT，管制牙 G； ● screw teeth specifications: metric teeth Metric, German teeth PG, US teeth
● 产品材质：金属部件采用黄铜镀镍制成，夹紧件采用尼龙塑料 (PA) 制成， NPT, control teeth G
密封件和 O 型密封圈均采用丁腈橡胶 (NBR) 制成； ● Material: metal parts made of brass nickel plating, clamping parts made of
nylon plastic (PA), seals and O-ring are made of nitrile rubber (NBR) made.
● 产品认证：欧洲 CE 认证、欧洲 ROHS 认证、欧洲 REACH 认证； ● Product Certification: European CE certification, the European ROHS
● 防护等级：在规定的卡口范围内，并使用 O 型密封圈旋紧迫紧头，达到 certification, the European REACH certification.
IP68-10 巴压力； ● Protection class: within the specified bayonet range, and use the O-ring to
● 颜色种类：金属色； tighten the head, to IP68-10 bar pressure.
● 工作温度：静态：- 40℃到 100℃，短时间达 120℃；动态：-20℃到 ● Color type: metallic color
80℃，短时间达 100℃； ● Operating temperature: static: - 40 ℃ to 100 ℃ , short time up to 120 ℃ .
Dynamic: -20 ℃ to 80 ℃ , a short time up to 100 ℃
● 产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计。配合迫紧头装配省时便利， ● Product features: special clamping claws and clamping ring embossed
夹紧电缆范围大、抗拉力强、可防水、防尘 ~ 抗盐、耐酸碱、酒精油脂及 design. With the tight end of the assembly time and convenience, clamping
一般溶剂； cable range, strong tensile strength, waterproof, dust ~ salt, acid, alcohol
● 多样出孔：有 2-8 个孔电线、电缆专用之出线设计，使每一根电缆得到最 and oil and general solvent.
佳之防水绝缘效果，且不致相互缠绕； ● A variety of holes: 2-8 holes of wire, cable-specific outlet design, so that
● 备注：如需更多孔。请说明相关参数，如：型号规格、电缆外径、孔数等。 each cable to get the best waterproof insulation effect, and not intertwined
with each other.
● Note: For more holes. Please specify the relevant parameters, such as:
model specifications, cable diameter, number of holes and so on.

结构图 / Chart

㳦⃹ ೗❳ ᱘ѿ ๥㉓ఴ ๥㉓❖ 䔗㉓๠
/VU (BTLFU 0OUPMPHZ $MBNQJOH SJOH $MBNQJOH DMBX 5JHIU IFBE
