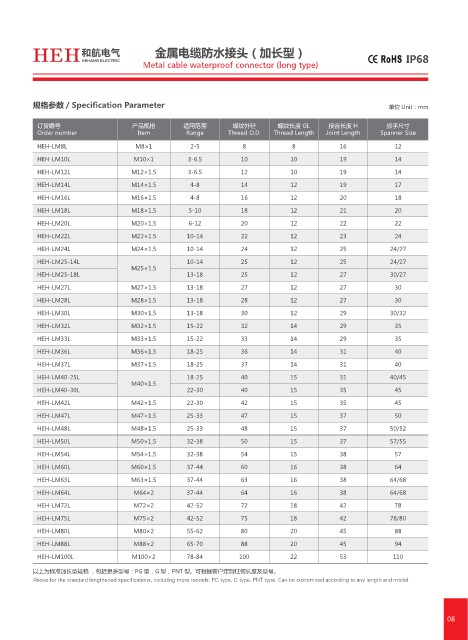

HEH 和航电气 金属电缆防水接头（加长型）
HEHANG ELECTRIC
Metal cable waterproof connector (long type)

规格参数 / Specification Parameter 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-LM8L M8×1 2-5 8 8 16 12
HEH-LM10L M10×1 3-6.5 10 10 19 14
HEH-LM12L M12×1.5 3-6.5 12 10 19 14
HEH-LM14L M14×1.5 4-8 14 12 19 17
HEH-LM16L M16×1.5 4-8 16 12 20 18
HEH-LM18L M18×1.5 5-10 18 12 21 20
HEH-LM20L M20×1.5 6-12 20 12 22 22
HEH-LM22L M22×1.5 10-14 22 12 23 24

HEH-LM24L M24×1.5 10-14 24 12 25 24/27
HEH-LM25-14L 10-14 25 12 25 24/27
M25×1.5
HEH-LM25-18L 13-18 25 12 27 30/27
HEH-LM27L M27×1.5 13-18 27 12 27 30
HEH-LM28L M28×1.5 13-18 28 12 27 30
HEH-LM30L M30×1.5 13-18 30 12 29 30/32
HEH-LM32L M32×1.5 15-22 32 14 29 35
HEH-LM33L M33×1.5 15-22 33 14 29 35
HEH-LM36L M36×1.5 18-25 36 14 31 40
HEH-LM37L M37×1.5 18-25 37 14 31 40
HEH-LM40-25L 18-25 40 15 31 40/45
M40×1.5
HEH-LM40-30L 22-30 40 15 35 45
HEH-LM42L M42×1.5 22-30 42 15 35 45
HEH-LM47L M47×1.5 25-33 47 15 37 50
HEH-LM48L M48×1.5 25-33 48 15 37 50/52
HEH-LM50L M50×1.5 32-38 50 15 37 57/55
HEH-LM54L M54×1.5 32-38 54 15 38 57

HEH-LM60L M60×1.5 37-44 60 16 38 64
HEH-LM63L M63×1.5 37-44 63 16 38 64/68
HEH-LM64L M64×2 37-44 64 16 38 64/68
HEH-LM72L M72×2 42-52 72 18 42 78
HEH-LM75L M75×2 42-52 75 18 42 78/80
HEH-LM80L M80×2 55-62 80 20 45 88
HEH-LM88L M88×2 65-70 88 20 45 94
HEH-LM100L M100×2 78-84 100 22 53 110
以上为标准加长型规格 ，包括更多型号：PG 型，G 型，PNT 型。可根据客户定制任何长度及型号。
Above for the standard lengthened specifications, including more models: PG type, G type, PNT type. Can be customized according to any length and model.
