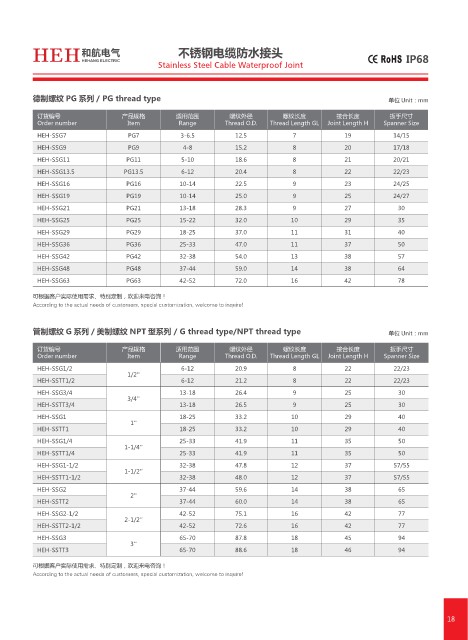

HEH 和航电气 不锈钢电缆防水接头
HEHANG ELECTRIC
Stainless Steel Cable Waterproof Joint

德制螺纹 PG 系列 / PG thread type 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 接合长度 扳手尺寸
Order number Item Range Thread O.D. Thread Length GL Joint Length H Spanner Size
HEH-SSG7 PG7 3-6.5 12.5 7 19 14/15
HEH-SSG9 PG9 4-8 15.2 8 20 17/18
HEH-SSG11 PG11 5-10 18.6 8 21 20/21
HEH-SSG13.5 PG13.5 6-12 20.4 8 22 22/23
HEH-SSG16 PG16 10-14 22.5 9 23 24/25
HEH-SSG19 PG19 10-14 25.0 9 25 24/27
HEH-SSG21 PG21 13-18 28.3 9 27 30
HEH-SSG25 PG25 15-22 32.0 10 29 35
HEH-SSG29 PG29 18-25 37.0 11 31 40
HEH-SSG36 PG36 25-33 47.0 11 37 50
HEH-SSG42 PG42 32-38 54.0 13 38 57
HEH-SSG48 PG48 37-44 59.0 14 38 64
HEH-SSG63 PG63 42-52 72.0 16 42 78
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!

管制螺纹 G 系列 / 美制螺纹 NPT 型系列 / G thread type/NPT thread type 单位 Unit：mm

订货编号 产品规格 适用范围 螺纹外径 螺纹长度 接合长度 扳手尺寸
Order number Item Range Thread O.D. Thread Length GL Joint Length H Spanner Size
HEH-SSG1/2 6-12 20.9 8 22 22/23
1/2''
HEH-SSTT1/2 6-12 21.2 8 22 22/23
HEH-SSG3/4 13-18 26.4 9 25 30
3/4''
HEH-SSTT3/4 13-18 26.5 9 25 30
HEH-SSG1 18-25 33.2 10 29 40
1''
HEH-SSTT1 18-25 33.2 10 29 40
HEH-SSG1/4 25-33 41.9 11 35 50
1-1/4''
HEH-SSTT1/4 25-33 41.9 11 35 50
HEH-SSG1-1/2 32-38 47.8 12 37 57/55
1-1/2''
HEH-SSTT1-1/2 32-38 48.0 12 37 57/55
HEH-SSG2 37-44 59.6 14 38 65
2''
HEH-SSTT2 37-44 60.0 14 38 65
HEH-SSG2-1/2 42-52 75.1 16 42 77
2-1/2''
HEH-SSTT2-1/2 42-52 72.6 16 42 77
HEH-SSG3 65-70 87.8 18 45 94
3''
HEH-SSTT3 65-70 88.6 18 46 94
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
