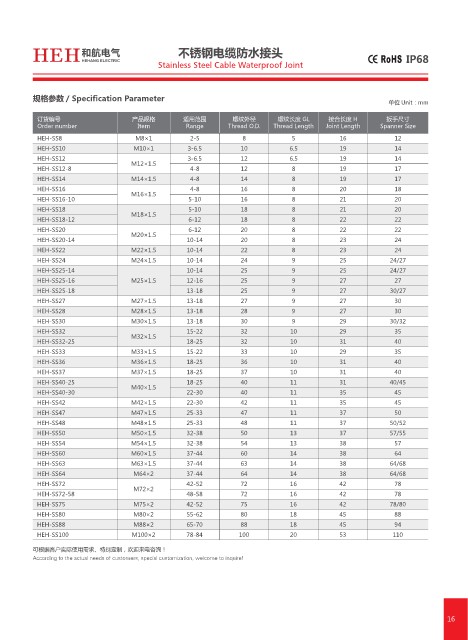

HEH 和航电气 不锈钢电缆防水接头
HEHANG ELECTRIC
Stainless Steel Cable Waterproof Joint

规格参数 / Specification Parameter
单位 Unit：mm
订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-SS8 M8×1 2-5 8 5 16 12
HEH-SS10 M10×1 3-6.5 10 6.5 19 14
HEH-SS12 3-6.5 12 6.5 19 14
M12×1.5
HEH-SS12-8 4-8 12 8 19 17
HEH-SS14 M14×1.5 4-8 14 8 19 17
HEH-SS16 4-8 16 8 20 18
M16×1.5
HEH-SS16-10 5-10 16 8 21 20
HEH-SS18 M18×1.5 5-10 18 8 21 20
HEH-SS18-12 6-12 18 8 22 22
HEH-SS20 6-12 20 8 22 22
M20×1.5
HEH-SS20-14 10-14 20 8 23 24
HEH-SS22 M22×1.5 10-14 22 8 23 24
HEH-SS24 M24×1.5 10-14 24 9 25 24/27
HEH-SS25-14 10-14 25 9 25 24/27
HEH-SS25-16 M25×1.5 12-16 25 9 27 27
HEH-SS25-18 13-18 25 9 27 30/27
HEH-SS27 M27×1.5 13-18 27 9 27 30
HEH-SS28 M28×1.5 13-18 28 9 27 30
HEH-SS30 M30×1.5 13-18 30 9 29 30/32
HEH-SS32 15-22 32 10 29 35
M32×1.5
HEH-SS32-25 18-25 32 10 31 40
HEH-SS33 M33×1.5 15-22 33 10 29 35
HEH-SS36 M36×1.5 18-25 36 10 31 40
HEH-SS37 M37×1.5 18-25 37 10 31 40
HEH-SS40-25 18-25 40 11 31 40/45
M40×1.5
HEH-SS40-30 22-30 40 11 35 45
HEH-SS42 M42×1.5 22-30 42 11 35 45
HEH-SS47 M47×1.5 25-33 47 11 37 50
HEH-SS48 M48×1.5 25-33 48 11 37 50/52
HEH-SS50 M50×1.5 32-38 50 13 37 57/55
HEH-SS54 M54×1.5 32-38 54 13 38 57
HEH-SS60 M60×1.5 37-44 60 14 38 64
HEH-SS63 M63×1.5 37-44 63 14 38 64/68
HEH-SS64 M64×2 37-44 64 14 38 64/68
HEH-SS72 42-52 72 16 42 78
M72×2
HEH-SS72-58 48-58 72 16 42 78
HEH-SS75 M75×2 42-52 75 16 42 78/80
HEH-SS80 M80×2 55-62 80 18 45 88
HEH-SS88 M88×2 65-70 88 18 45 94
HEH-SS100 M100×2 78-84 100 20 53 110
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
