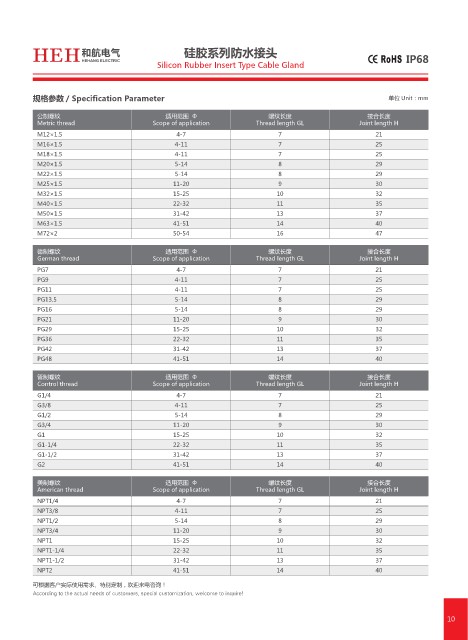

HEH 和航电气 硅胶系列防水接头
HEHANG ELECTRIC
Silicon Rubber Insert Type Cable Gland

规格参数 / Specification Parameter 单位 Unit：mm

公制螺纹 适用范围 Ф 螺纹长度 接合长度
Metric thread Scope of application Thread length GL Joint length H
M12×1.5 4-7 7 21
M16×1.5 4-11 7 25
M18×1.5 4-11 7 25
M20×1.5 5-14 8 29
M22×1.5 5-14 8 29
M25×1.5 11-20 9 30
M32×1.5 15-25 10 32
M40×1.5 22-32 11 35
M50×1.5 31-42 13 37
M63×1.5 41-51 14 40
M72×2 50-54 16 47

德制螺纹 适用范围 Ф 螺纹长度 接合长度
German thread Scope of application Thread length GL Joint length H
PG7 4-7 7 21
PG9 4-11 7 25
PG11 4-11 7 25
PG13.5 5-14 8 29
PG16 5-14 8 29
PG21 11-20 9 30
PG29 15-25 10 32
PG36 22-32 11 35
PG42 31-42 13 37
PG48 41-51 14 40

管制螺纹 适用范围 Ф 螺纹长度 接合长度
Control thread Scope of application Thread length GL Joint length H
G1/4 4-7 7 21
G3/8 4-11 7 25
G1/2 5-14 8 29
G3/4 11-20 9 30
G1 15-25 10 32
G1-1/4 22-32 11 35
G1-1/2 31-42 13 37
G2 41-51 14 40

美制螺纹 适用范围 Ф 螺纹长度 接合长度
American thread Scope of application Thread length GL Joint length H
NPT1/4 4-7 7 21
NPT3/8 4-11 7 25
NPT1/2 5-14 8 29
NPT3/4 11-20 9 30
NPT1 15-25 10 32
NPT1-1/4 22-32 11 35
NPT1-1/2 31-42 13 37
NPT2 41-51 14 40

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
