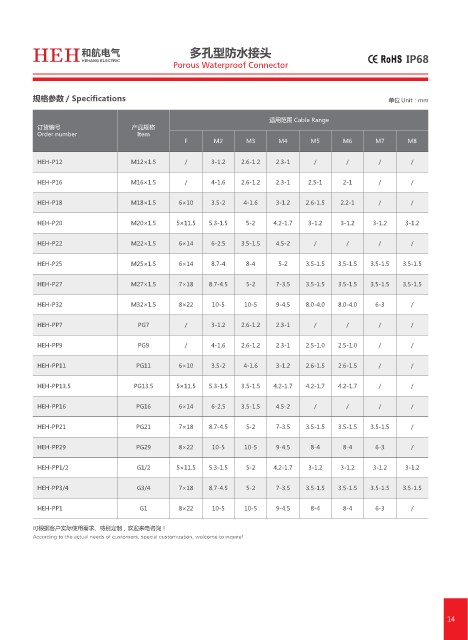

HEH 和航电气 多孔型防水接头
HEHANG ELECTRIC
Porous Waterproof Connector

规格参数 / Specifications 单位 Unit：mm

适用范围 Cable Range
订货编号 产品规格
Order number Item
F M2 M3 M4 M5 M6 M7 M8

HEH-P12 M12×1.5 / 3-1.2 2.6-1.2 2.3-1 / / / /

HEH-P16 M16×1.5 / 4-1.6 2.6-1.2 2.3-1 2.5-1 2-1 / /

HEH-P18 M18×1.5 6×10 3.5-2 4-1.6 3-1.2 2.6-1.5 2.2-1 / /

HEH-P20 M20×1.5 5×11.5 5.3-1.5 5-2 4.2-1.7 3-1.2 3-1.2 3-1.2 3-1.2

HEH-P22 M22×1.5 6×14 6-2.5 3.5-1.5 4.5-2 / / / /

HEH-P25 M25×1.5 6×14 8.7-4 8-4 5-2 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5

HEH-P27 M27×1.5 7×18 8.7-4.5 5-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5

HEH-P32 M32×1.5 8×22 10-5 10-5 9-4.5 8.0-4.0 8.0-4.0 6-3 /

HEH-PP7 PG7 / 3-1.2 2.6-1.2 2.3-1 / / / /

HEH-PP9 PG9 / 4-1.6 2.6-1.2 2.3-1 2.5-1.0 2.5-1.0 / /

HEH-PP11 PG11 6×10 3.5-2 4-1.6 3-1.2 2.6-1.5 2.6-1.5 / /

HEH-PP13.5 PG13.5 5×11.5 5.3-1.5 3.5-1.5 4.2-1.7 4.2-1.7 4.2-1.7 / /

HEH-PP16 PG16 6×14 6-2.5 3.5-1.5 4.5-2 / / / /

HEH-PP21 PG21 7×18 8.7-4.5 5-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5 /

HEH-PP29 PG29 8×22 10-5 10-5 9-4.5 8-4 8-4 6-3 /

HEH-PP1/2 G1/2 5×11.5 5.3-1.5 5-2 4.2-1.7 3-1.2 3-1.2 3-1.2 3-1.2

HEH-PP3/4 G3/4 7×18 8.7-4.5 5-2 7-3.5 3.5-1.5 3.5-1.5 3.5-1.5 3.5-1.5

HEH-PP1 G1 8×22 10-5 10-5 9-4.5 8-4 8-4 6-3 /

可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
