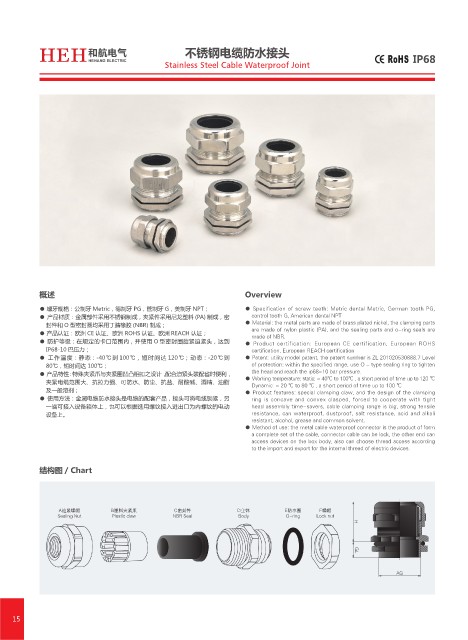

HEH 和航电气 不锈钢电缆防水接头
HEHANG ELECTRIC
Stainless Steel Cable Waterproof Joint

概述 Overview
● 螺牙规格：公制牙 Metric，德制牙 PG，管制牙 G，美制牙 NPT； ● Specification of screw teeth: Metric dental Metric, German tooth PG,
● 产品材质：金属部件采用不锈钢制成，夹紧件采用尼龙塑料 (PA) 制成，密 control tooth G, American dental NPT
封件和 O 型密封圈均采用丁腈橡胶 (NBR) 制成； ● Material: the metal parts are made of brass plated nickel, the clamping parts
● 产品认证：欧洲 CE 认证、欧洲 ROHS 认证、欧洲 REACH 认证； are made of nylon plastic (PA), and the sealing parts and o-ring seals are
made of NBR.
● 防护等级：在规定的卡口范围内，并使用 O 型密封圈旋紧迫紧头，达到 ● Product certification: European CE certification, European ROHS
IP68-10 巴压力； certification, European REACH certification
● 工作温度：静态：-40℃到 100℃，短时间达 120℃；动态：-20℃到 ● Patent: utility model patent, the patent number is ZL 201020530888.7 Level
80℃，短时间达 100℃； of protection: within the specified range, use O - type sealing ring to tighten
● 产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利， the head and reach the ip68-10 bar pressure.
夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、酒精、油脂 ● Working temperature: static: - 40℃ to 100℃ , a short period of time up to 120 ℃
Dynamic: - 20 ℃ to 80 ℃ , a short period of time up to 100 ℃
及一般溶剂； ● Product features: special clamping claw, and the design of the clamping
● 使用方法：金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另 ring is concave and convex clasped, forced to cooperate with tight
一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动 head assembly time-savers, cable clamping range is big, strong tensile
设备上。 resistance, can waterproof, dustproof, salt resistance, acid and alkali
resistant, alcohol, grease and common solvent.
● Method of use: the metal cable waterproof connector is the product of form
a complete set of the cable, connector cable can be lock, the other end can
access devices on the box body, also can choose thread access according
to the import and export for the internal thread of electric devices.

结构图 / Chart

"ᤔጊᛂࣤ #܇஧݂ጊྒ $ࠚ࠯͇ %˞ͳ &᫸පړ 'ᛂࣤ
4FBMJOH /VU 1MBTUJD DMBX /#3 4FBM #PEZ 0 SJOH -PDL OVU
)

(-

"(

15
