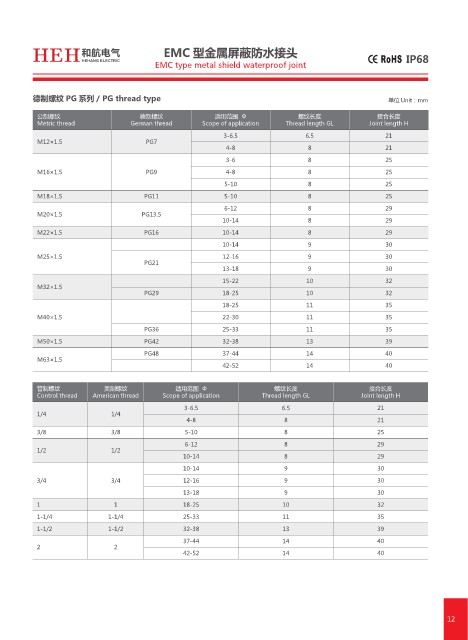

HEH 和航电气 EMC 型金属屏蔽防水接头
HEHANG ELECTRIC
EMC type metal shield waterproof joint

德制螺纹 PG 系列 / PG thread type 单位 Unit：mm

公制螺纹 德制螺纹 适用范围 Ф 螺纹长度 接合长度
Metric thread German thread Scope of application Thread length GL Joint length H
3-6.5 6.5 21
M12×1.5 PG7
4-8 8 21
3-6 8 25
M16×1.5 PG9 4-8 8 25
5-10 8 25
M18×1.5 PG11 5-10 8 25
6-12 8 29
M20×1.5 PG13.5
10-14 8 29
M22×1.5 PG16 10-14 8 29
10-14 9 30
M25×1.5 12-16 9 30
PG21
13-18 9 30
15-22 10 32
M32×1.5
PG29 18-25 10 32
18-25 11 35
M40×1.5 22-30 11 35
PG36 25-33 11 35
M50×1.5 PG42 32-38 13 39
PG48 37-44 14 40
M63×1.5
42-52 14 40

管制螺纹 美制螺纹 适用范围 Ф 螺纹长度 接合长度
Control thread American thread Scope of application Thread length GL Joint length H
3-6.5 6.5 21
1/4 1/4
4-8 8 21
3/8 3/8 5-10 8 25
6-12 8 29
1/2 1/2
10-14 8 29
10-14 9 30
3/4 3/4 12-16 9 30
13-18 9 30
1 1 18-25 10 32
1-1/4 1-1/4 25-33 11 35
1-1/2 1-1/2 32-38 13 39
37-44 14 40
2 2
42-52 14 40
