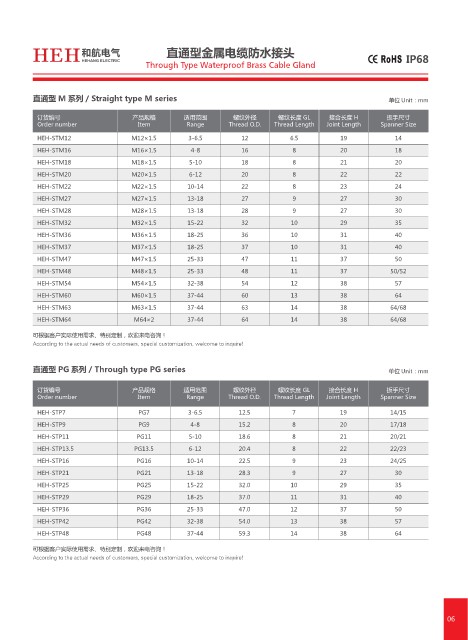

HEH 和航电气 直通型金属电缆防水接头
HEHANG ELECTRIC
Through Type Waterproof Brass Cable Gland
直通型 M 系列 / Straight type M series 单位 Unit：mm
订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-STM12 M12×1.5 3-6.5 12 6.5 19 14
HEH-STM16 M16×1.5 4-8 16 8 20 18
HEH-STM18 M18×1.5 5-10 18 8 21 20
HEH-STM20 M20×1.5 6-12 20 8 22 22
HEH-STM22 M22×1.5 10-14 22 8 23 24
HEH-STM27 M27×1.5 13-18 27 9 27 30
HEH-STM28 M28×1.5 13-18 28 9 27 30
HEH-STM32 M32×1.5 15-22 32 10 29 35
HEH-STM36 M36×1.5 18-25 36 10 31 40
HEH-STM37 M37×1.5 18-25 37 10 31 40
HEH-STM47 M47×1.5 25-33 47 11 37 50
HEH-STM48 M48×1.5 25-33 48 11 37 50/52
HEH-STM54 M54×1.5 32-38 54 12 38 57
HEH-STM60 M60×1.5 37-44 60 13 38 64
HEH-STM63 M63×1.5 37-44 63 14 38 64/68
HEH-STM64 M64×2 37-44 64 14 38 64/68
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
直通型 PG 系列 / Through type PG series 单位 Unit：mm
订货编号 产品规格 适用范围 螺纹外径 螺纹长度 GL 接合长度 H 扳手尺寸
Order number Item Range Thread O.D. Thread Length Joint Length Spanner Size
HEH-STP7 PG7 3-6.5 12.5 7 19 14/15
HEH-STP9 PG9 4-8 15.2 8 20 17/18
HEH-STP11 PG11 5-10 18.6 8 21 20/21
HEH-STP13.5 PG13.5 6-12 20.4 8 22 22/23
HEH-STP16 PG16 10-14 22.5 9 23 24/25
HEH-STP21 PG21 13-18 28.3 9 27 30
HEH-STP25 PG25 15-22 32.0 10 29 35
HEH-STP29 PG29 18-25 37.0 11 31 40
HEH-STP36 PG36 25-33 47.0 12 37 50
HEH-STP42 PG42 32-38 54.0 13 38 57
HEH-STP48 PG48 37-44 59.3 14 38 64
可根据客户实际使用需求、特别定制，欢迎来电咨询！
According to the actual needs of customers, special customization, welcome to inquire!
