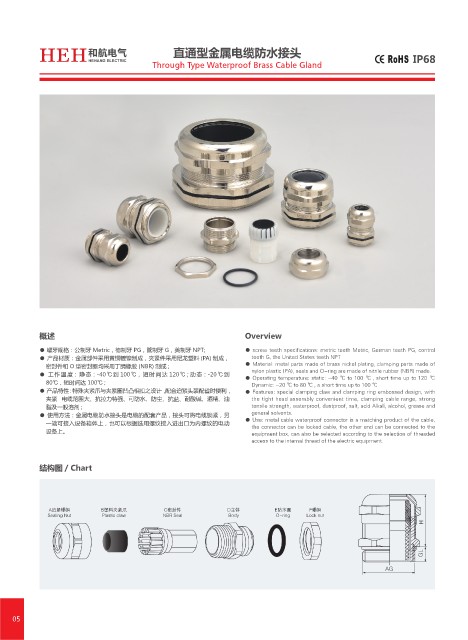

HEH 和航电气 直通型金属电缆防水接头
HEHANG ELECTRIC
Through Type Waterproof Brass Cable Gland

概述 Overview

● 螺牙规格：公制牙 Metric，德制牙 PG，管制牙 G，美制牙 NPT; ● screw teeth specifications: metric teeth Metric, German teeth PG, control
● 产品材质：金属部件采用黄铜镀镍制成，夹紧件采用尼龙塑料 (PA) 制成， teeth G, the United States teeth NPT
密封件和 O 型密封圈均采用丁腈橡胶 (NBR) 制成 ; ● Material: metal parts made of brass nickel plating, clamping parts made of
nylon plastic (PA), seals and O-ring are made of nitrile rubber (NBR) made.
● 工作温度：静态：-40 ℃到 100 ℃，短时间达 120℃ ; 动态：-20℃到 ● Operating temperature: static: -40 ℃ to 100 ℃ , short time up to 120 ℃
80℃，短时间达 100℃ ; Dynamic: -20 ℃ to 80 ℃ , a short time up to 100 ℃
● 产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利， ● Features: special clamping claw and clamping ring embossed design, with
夹紧 电缆范围大、抗拉力特强、可防水、防尘、抗盐、耐酸碱、酒精、油 the tight head assembly convenient time, clamping cable range, strong
脂及一般溶剂 ; tensile strength, waterproof, dustproof, salt, acid Alkali, alcohol, grease and
● 使用方法：金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另 general solvents.
一端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动 ● Use: metal cable waterproof connector is a matching product of the cable,
the connector can be locked cable, the other end can be connected to the
设备上。 equipment box, can also be selected according to the selection of threaded
access to the internal thread of the electric equipment.

结构图 / Chart

"ᤔጊᛂࣤ #܇஧݂ጊྒ $ࠚ࠯͇ %˞ͳ &᫸පړ 'ᛂࣤ
4FBMJOH /VU 1MBTUJD DMBX /#3 4FBM #PEZ 0 SJOH -PDL OVU
)

(-

"(

05
