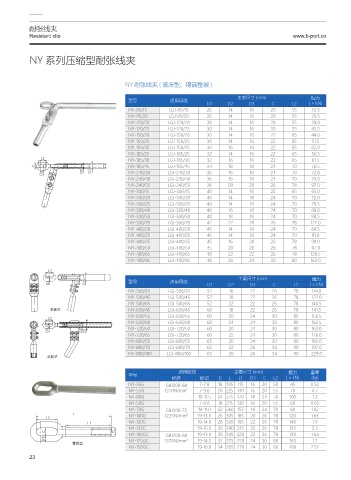

耐张线夹
Resistant clip www.b-port.cn

NY 系列压缩型耐张线夹

NY 耐张线夹 ( 液压型、钢锚整锻 )

主要尺寸 (mm) 握力
型号 适用导线
D1 D2 D3 C L2 ( ≥ kN)
NY-95/15 LGJ-95/15 26 14 16 20 55 33.5
NY-95/20 LGJ-95/20 26 14 16 20 55 35.5
NY-120/20 LGJ-120/20 30 14 16 20 55 39.0
NY-120/25 LGJ-120/25 30 14 16 20 55 45.5
NY-150/20 LGJ-150/20 30 14 16 22 65 44.0
NY-150/25 LGJ-150/25 30 14 16 22 65 51.5
NY-150/35 LGJ-150/35 30 16 16 22 65 62.0
NY-185/25 LGJ-185/25 32 14 16 22 65 56.5
- NY-185/30 LGJ-185/30 32 16 16 22 65 61.5
$ NY-185/45 LGJ-185/45 34 18 18 24 70 76.5
% % % NY-240/30 LGJ-240/30 36 16 18 24 70 72.0
NY-240/40 LGJ-240/40 36 16 18 24 70 79.0
NY-240/55 LGJ-240/55 36 20 20 26 78 97.0
NY-300/15 LGJ-300/15 40 14 16 22 65 65.0
NY-300/20 LGJ-300/20 40 14 18 24 70 72.0
NY-300/25 LGJ-300/25 40 14 18 24 70 79.5
NY-300/40 LGJ-300/40 40 16 18 24 70 88.0
NY-300/50 LGJ-300/50 40 18 18 24 70 98.5
NY-300/70 LGJ-300/70 42 22 20 26 78 122.0
NY-400/20 LGJ-400/20 45 14 18 24 70 84.5
NY-400/25 LGJ-400/25 45 14 18 24 70 91.0
NY-400/35 LGJ-400/35 45 16 20 26 78 99.0
NY-400/50 LGJ-400/50 45 20 20 26 78 117.0
NY-400/65 LGJ-400/65 48 22 22 26 78 128.5
NY-400/95 LGJ-400/95 48 26 24 30 80 163.0

-
$ 主要尺寸 (mm) 握力
% % % 型号 适用导线 D1 D2 D3 C L2 ( ≥ kN)
NY-500/35 LGJ-500/35 52 16 22 26 78 114.0
NY-500/45 LGJ-500/45 52 18 22 26 78 122.0
NY-500/65 LGJ-500/65 52 22 22 26 78 146.5
Ӭ౛य NY-630/45 LGJ-630/45 60 18 22 26 78 141.5
NY-630/55 LGJ-630/55 60 20 24 30 80 156.5
-
NY-630/80 LGJ-630/80 60 24 24 30 80 183.5
$
NY-720/50 LGJ-720/50 60 20 24 30 80 163.0
% % %
NY-720/65 LGJ-720/65 60 22 24 30 80 176.0
NY-800/55 LGJ-800/55 65 20 24 30 80 183.0
NY-800/70 LGJ-800/70 65 22 26 34 90 197.0
NY-800/100 LGJ-800/100 65 26 26 34 90 229.0
Ԥ౛य
适用胶线 主要尺寸 (mm) 握力 重量
型号
标准 标记 D L L1 D3 C L2 ( ≥ kN) (kg)
NY-35G GB1200-88 7-7.8 16 195 115 16 20 50 45 0.52
NY-55G 1270N/mm 2 7-9.6 20 225 140 16 20 55 70 0.7
NY-80G 19-11.5 24 275 170 18 24 70 100 1.3
NY-50G 7-9.0 18 215 130 16 20 55 60 0.63
NY-70G GB1200-75 19-11.0 22 260 155 18 24 70 80 1.02
- NY-100G 1225N/mm 2 19-13.0 26 305 185 20 26 78 120 1.63
-
- NY-120G 19-14.0 28 320 195 22 26 78 140 1.9
NY-135G 19-15.0 30 340 215 22 26 78 155 2.3
$ %
NY-100GC GB1200-88 19-13.0 28 345 220 22 26 78 130 1.64
% NY-125GC 1370N/mm 2 19-14.5 32 375 250 24 30 80 165 1.7
ஞ᪏ۋ
NY-150GC 19-16.0 34 395 270 24 30 80 200 2.52
23
