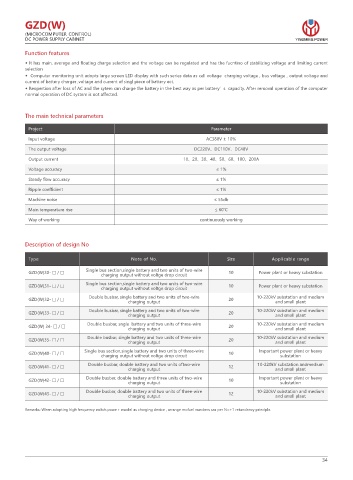

GZD(W)
(MICROCOMPUTER CONTROL)
DC POWER SUPPLY CABINET YINGMING POWER
Function features

◆ It has main, average and floating charge selection and the voltage can be regulated and has the fucntino of stabilizing voltage and limiting current
selection
◆ Computer monitoring unit adopts large screen LED display with such series data as cell voltage charging voltage , bus voltage , output voltage and
current of battery charger ,voltage and current of singl piece of battery ect.
◆ Reopertion after loss of AC and the sytem can charge the battery in the best way as per battery’s capacity. After removal operation of the computer
normal operation of DC system is not affected.

The main technical parameters
Project Parameter

Input voltage AC380V ± 10%
The output voltage DC220V、DC110V、DC48V
Output current 10、20、30、40、50、60、100、200A
Voltage accuracy ≤ 1%
Steady flow accuracy ≤ 1%
Ripple coefficient ≤ 1%
Machine noise ≤ 55db

Main temperature rise ≤ 60℃
Way of working continuously working

Description of design No

Type Note of No. Size Applicable range
Single bus section,single battery and two units of two-wire
GZD(W)30- □ / □ 10 Power plant or heavy substation
charging output without voltge drop circuit
Single bus section,single battery and two units of two-wire
GZD(W)31- □ / □ 10 Power plant or heavy substation
charging output without voltge drop circuit
Double busbar, single battery and two units of two-wire 10-220kV substation and medium
GZD(W)32- □ / □ charging output 20 and small plant
Double busbar, single battery and two units of two-wire 10-220kV substation and medium
GZD(W)33- □ / □ 20
charging output and small plant
Double busbar, sngle battery and two units of three-wire 10-220kV substation and medium
GZD(W) 34- □ / □ 20
charging output and small plant
Double busbar, single battery and two units of three-wire 10-220kV substation and medium
GZD(W)35- □ / □ charging output 20 and small plant
Single bus section,single battery and two units of three-wire Important power plant or heavy
GZD(W)40- □ / □ 10
charging output without voltge drop circuit substation
Double busbar, double battery and two units oftwo-wire 10-220kV substation andmedium
GZD(W)41- □ / □ 12
charging output and small plant
Double busbar, double battery and three units of two-wire Important power plant or heavy
GZD(W)42- □ / □ charging output 10 substation
Double busbar, double battery and two units of three-wire 10-220kV substation and medium
GZD(W)43- □ / □ 12
charging output and small plant
Remarks: When adopting high frequency switch powe r model as charging device , arrange mofuel numbers sas per N=+1 retundancy principle.

34
