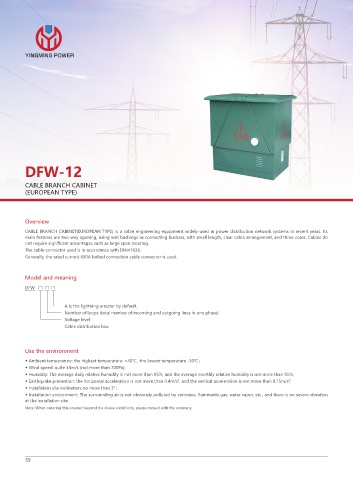

YINGMING POWER

DFW-12

CABLE BRANCH CABINET
(EUROPEAN TYPE)

Overview
CABLE BRANCH CABINET(EUROPEAN TYPE) is a cable engineering equipment widely used in power distribution network systems in recent years. Its
main features are two-way opening, using wall bushings as connecting busbars, with small length, clear cable arrangement, and three cores. Cables do
not require significant advantages such as large span crossing.
The cable connector used is in accordance with DIN47636.
Generally, the rated current 630A bolted connection cable connector is used.

Model and meaning
DFW □ □ □

A is the lightning arrester by default.
Number of loops (total number of incoming and outgoing lines in one phase)
Voltage level
Cable distribution box

Use the environment
◆ Ambient temperature: the highest temperature: +40℃ , the lowest temperature -30℃ ;
◆ Wind speed: quite 34m/s (not more than 700Pa);
◆ Humidity: The average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%;
2
◆ Earthquake prevention: the horizontal acceleration is not more than 0.4m/s , and the vertical acceleration is not more than 0.15m/s ; 2
◆ Installation site inclination: no more than 3° ;
◆ Installation environment: The surrounding air is not obviously polluted by corrosive, flammable gas, water vapor, etc., and there is no severe vibration
at the installation site.
Note: When ordering this product beyond the above conditions, please consult with the company.
