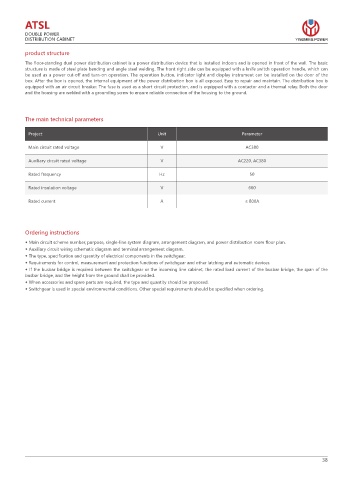

ATSL
          DOUBLE POWER
          DISTRIBUTION CABINET                                                                       YINGMING POWER
          product structure

          The floor-standing dual power distribution cabinet is a power distribution device that is installed indoors and is opened in front of the wall. The basic
          structure is made of steel plate bending and angle steel welding. The front right side can be equipped with a knife switch operation handle, which can
          be used as a power cut-off and turn-on operation. The operation button, indicator light and display instrument can be installed on the door of the
          box. After the box is opened, the internal equipment of the power distribution box is all exposed. Easy to repair and maintain. The distribution box is
          equipped with an air circuit breaker. The fuse is used as a short circuit protection, and is equipped with a contactor and a thermal relay. Both the door
          and the housing are welded with a grounding screw to ensure reliable connection of the housing to the ground.



          The main technical parameters


           Project                                    Unit                         Parameter
           Main circuit rated voltage                  V                            AC380

           Auxiliary circuit rated voltage             V                         AC220, AC380

           Rated frequency                             Hz                            50

           Rated insulation voltage                    V                             660

           Rated current                               A                            ≤ 800A




          Ordering instructions
          ◆ Main circuit scheme number, purpose, single-line system diagram, arrangement diagram, and power distribution room floor plan.
          ◆ Auxiliary circuit wiring schematic diagram and terminal arrangement diagram.
          ◆ The type, specification and quantity of electrical components in the switchgear.
          ◆ Requirements for control, measurement and protection functions of switchgear and other latching and automatic devices.
          ◆ If the busbar bridge is required between the switchgear or the incoming line cabinet, the rated load current of the busbar bridge, the span of the
          busbar bridge, and the height from the ground shall be provided.
          ◆ When accessories and spare parts are required, the type and quantity should be proposed.
          ◆ Switchgear is used in special environmental conditions. Other special requirements should be specified when ordering.
