YINGMING POWER

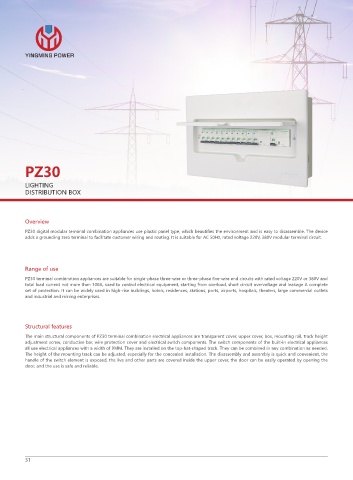

PZ30

LIGHTING
DISTRIBUTION BOX

Overview
PZ30 digital modular terminal combination appliances use plastic panel type, which beautifies the environment and is easy to disassemble. The device
adds a grounding zero terminal to facilitate customer wiring and routing. It is suitable for AC 50Hz, rated voltage 220V, 380V modular terminal circuit.

Range of use
PZ30 terminal combination appliances are suitable for single-phase three-wire or three-phase five-wire end circuits with rated voltage 220V or 380V and
total load current not more than 100A, used to control electrical equipment, starting from overload, short circuit overvoltage and leakage A complete
set of protection. It can be widely used in high-rise buildings, hotels, residences, stations, ports, airports, hospitals, theaters, large commercial outlets
and industrial and mining enterprises.

Structural features
The main structural components of PZ30 terminal combination electrical appliances are transparent cover, upper cover, box, mounting rail, track height
adjustment screw, conductive bar, wire protection cover and electrical switch components. The switch components of the built-in electrical appliances
all use electrical appliances with a width of 9MM. They are installed on the top-hat-shaped track. They can be combined in any combination as needed.
The height of the mounting track can be adjusted, especially for the concealed installation. The disassembly and assembly is quick and convenient, the
handle of the switch element is exposed, the live and other parts are covered inside the upper cover, the door can be easily operated by opening the
door, and the use is safe and reliable.

31
